Name: Summit Stairclimber
Brand: Vision
SKU: V-SUM-SC-F
Price: 5900.0 USD
Availability: InStock

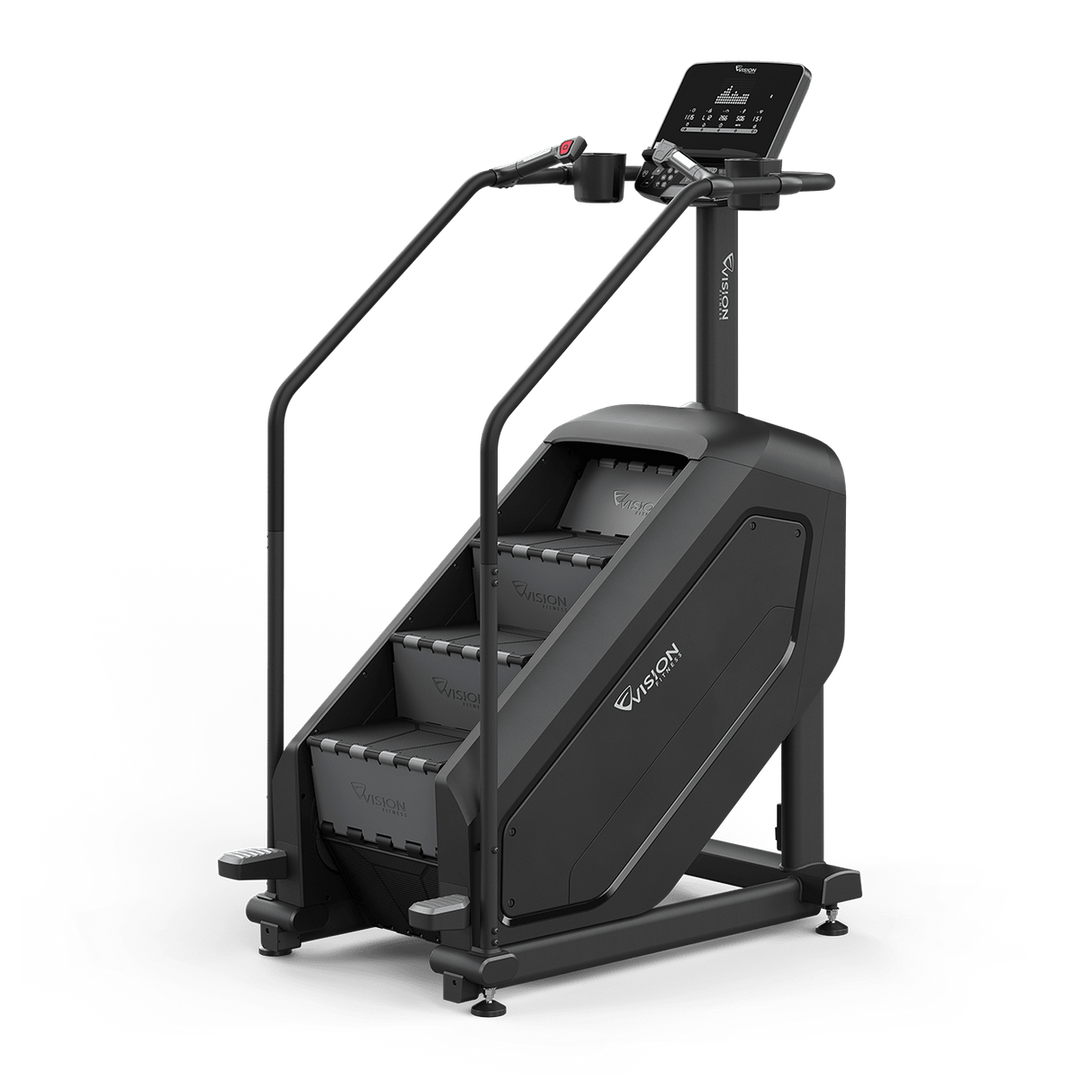

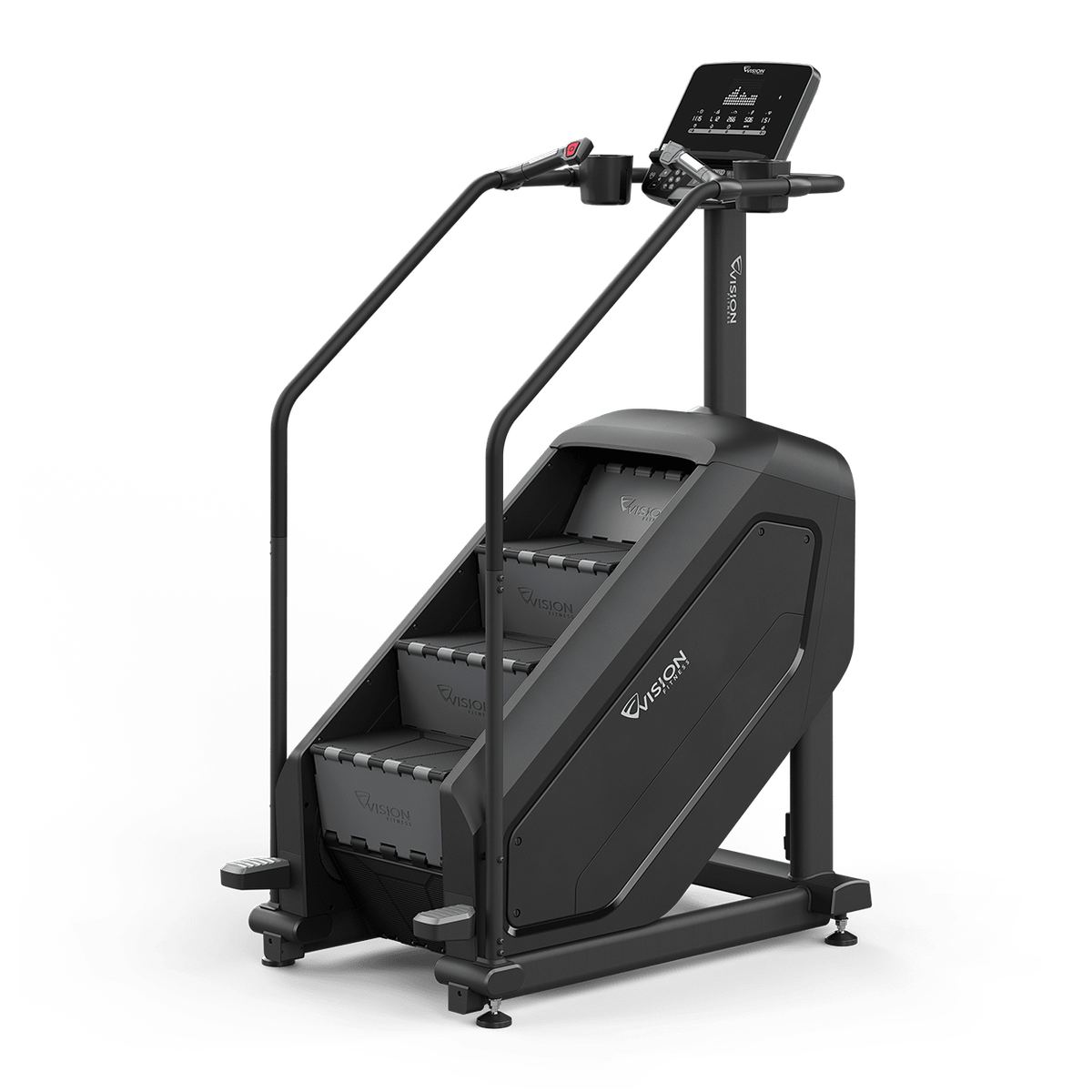

Rear angled view of the Vision Fitness Summit Stairclimber showing the frame, steps, handlebars, and console

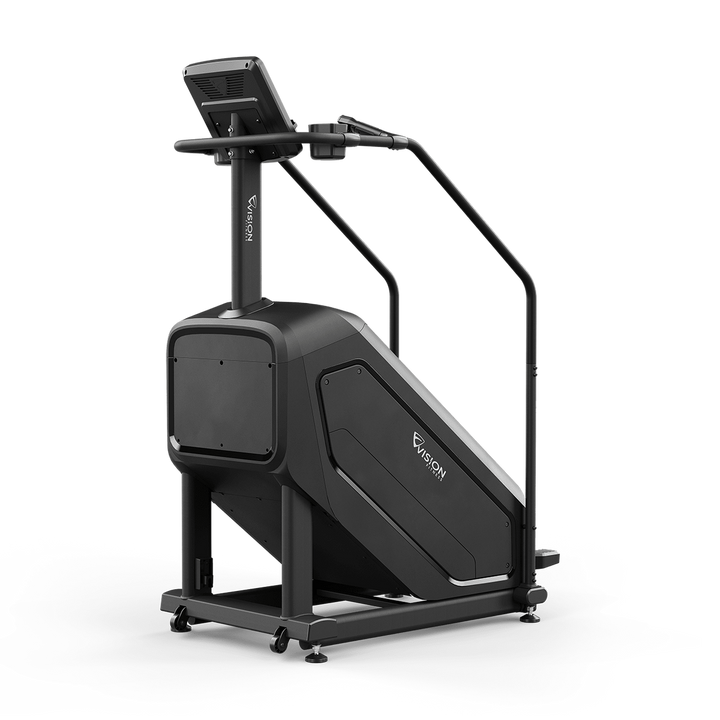

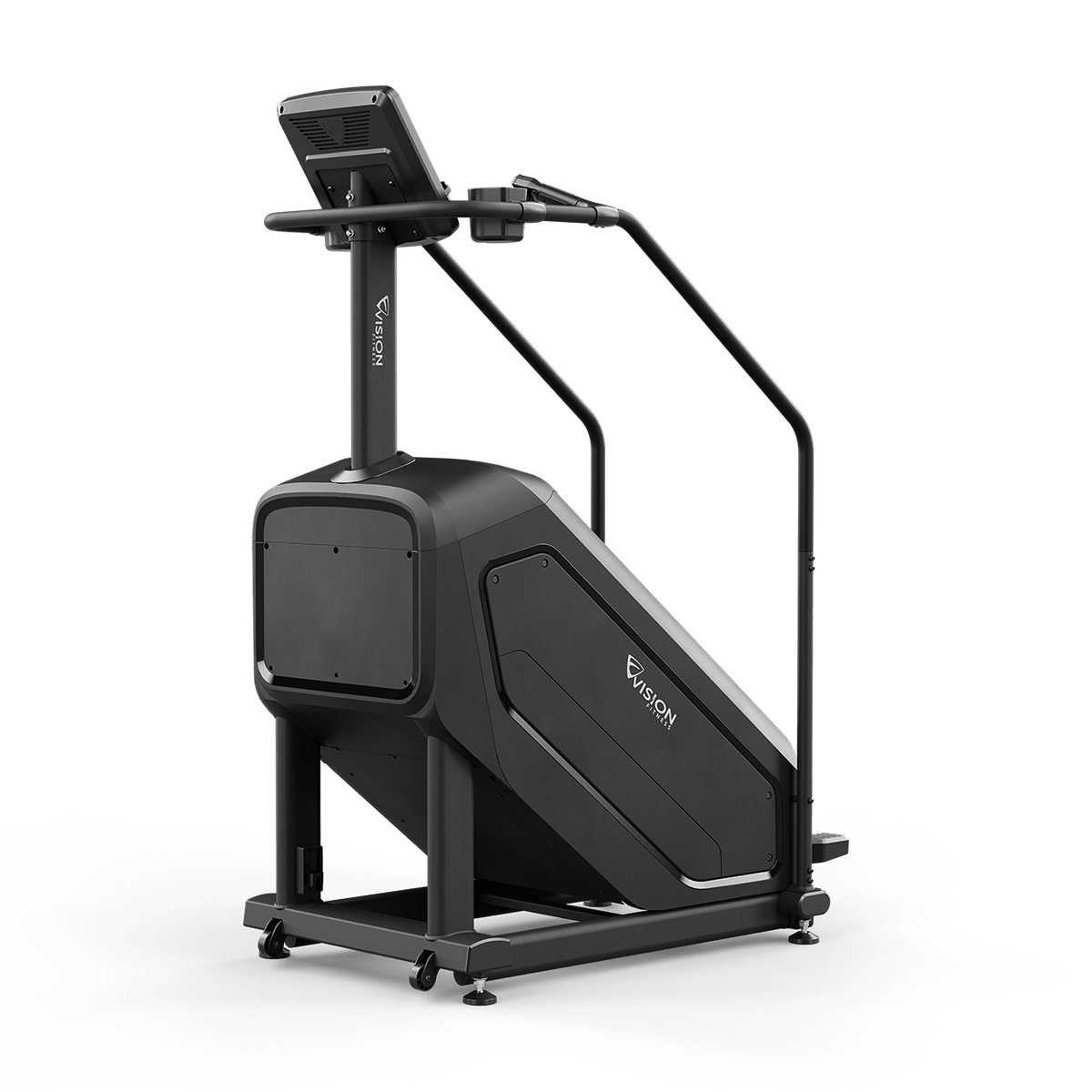

Vision Fitness Summit Stairclimber front angled view showing steps, full-length handlebars, frame, and DLED console

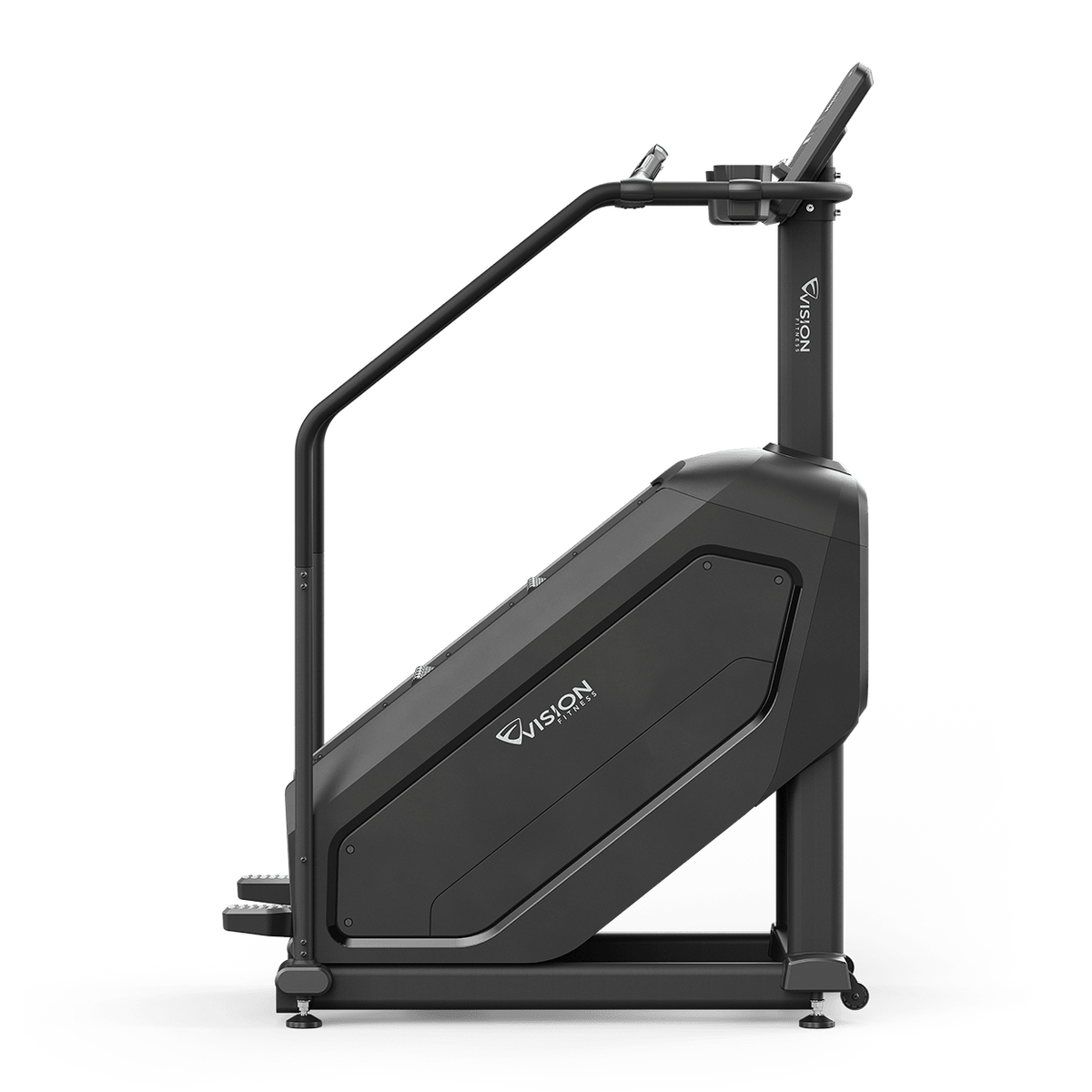

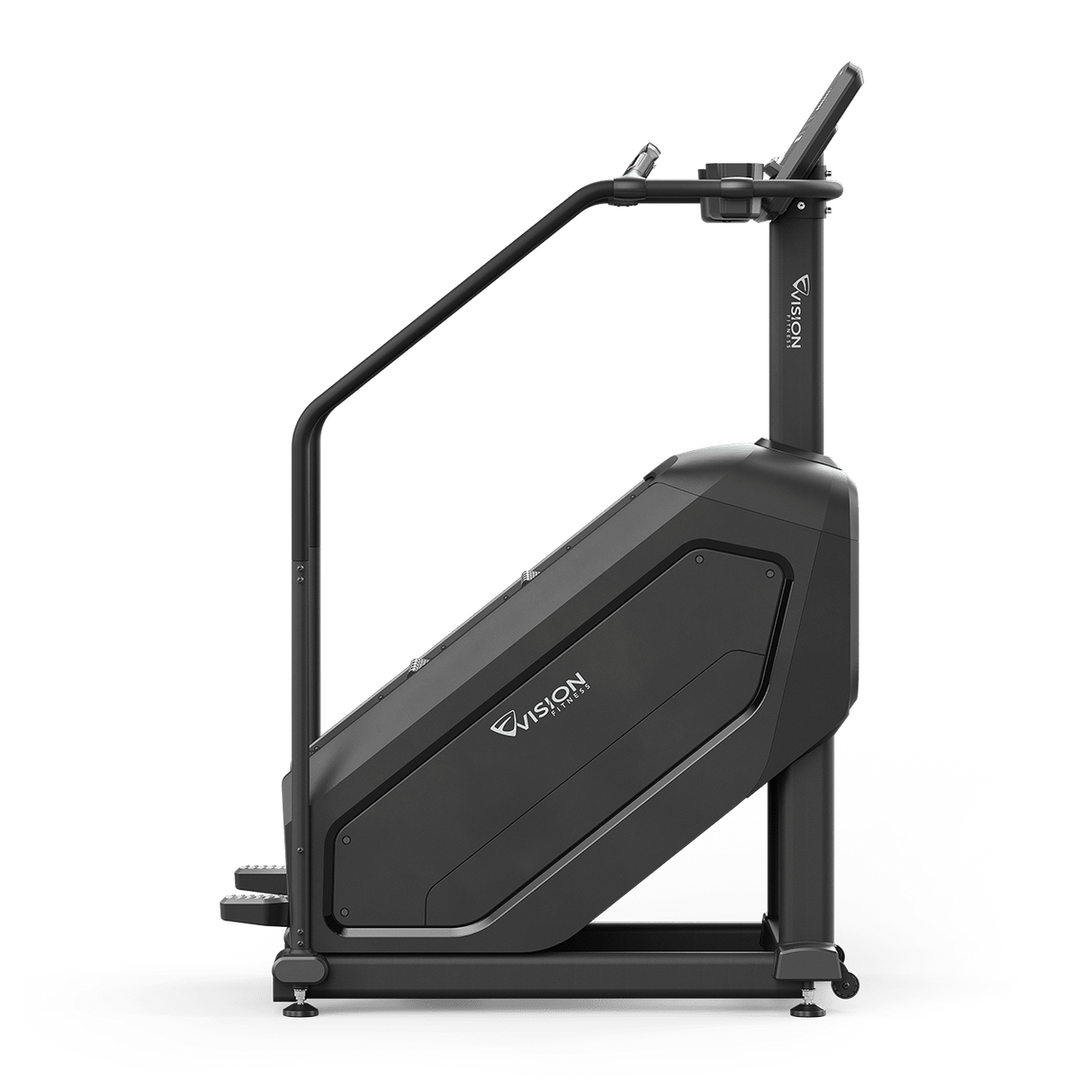

Side view of the Vision Fitness Summit Stairclimber showing its step area, enclosed frame, handlebars, and console

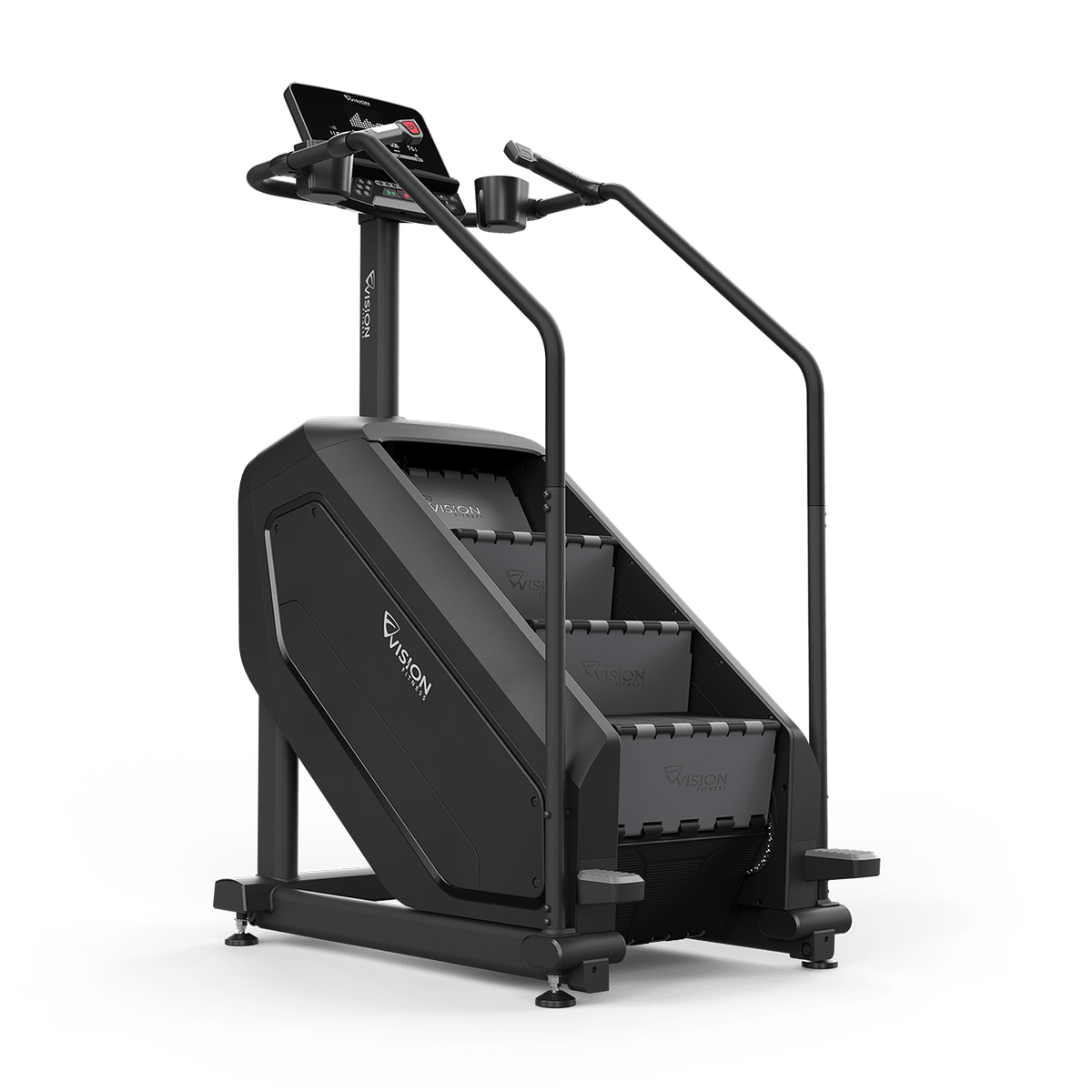

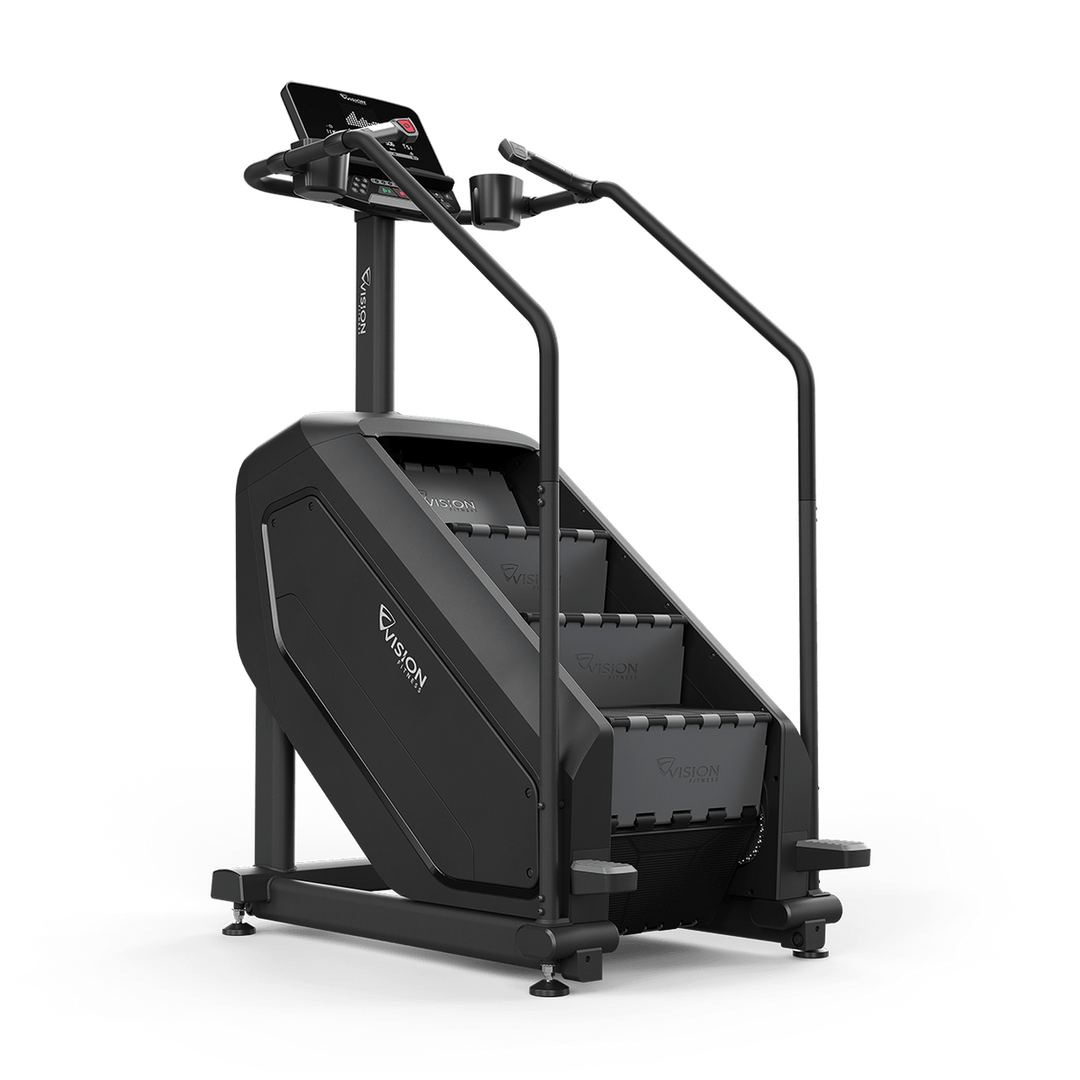

Rear side view of the Vision Fitness Summit Stairclimber with steps, full-length handlebars, frame, and DLED console

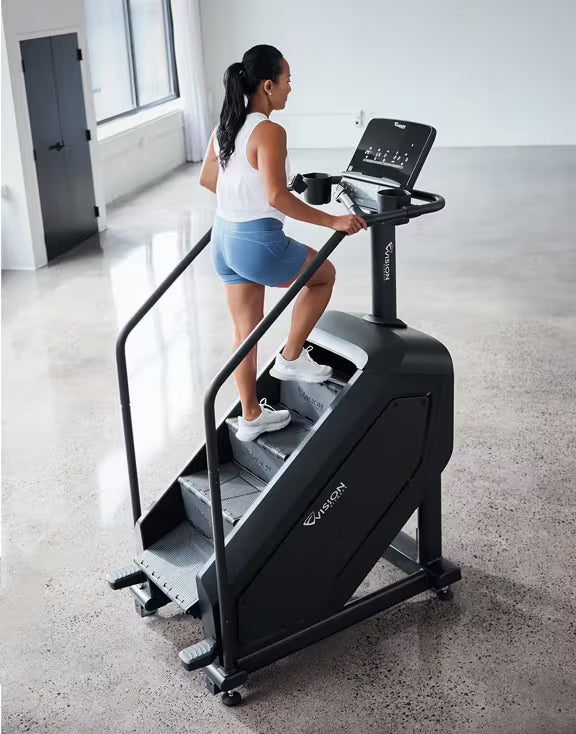

Person using the Vision Fitness Summit Stairclimber in a fitness facility with hands positioned on the handlebars

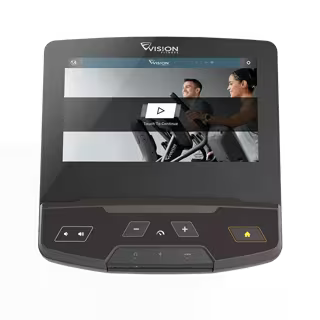

Vision Fitness 16 ENTERTAINMENT DISPLAY touchscreen console with color display, workout interface, and integrated control buttons

$5,900.00

Console Options

Summit Stairclimber Only

Summit Stairclimber w/ DLED Console

Summit Stairclimber w/16" Entertainment Display

COMMERCIAL STAIR CLIMBING CARDIO

The Vision Fitness Summit Stairclimber with DLED Console is designed for commercial fitness environments with a compact footprint and 25 resistance levels. Full-length handlebars, a 9.8-inch step-on height, and an open platform support convenient access and positioning. The DLED Console provides workout feedback, multiple programs, Bluetooth, NFC, USB-A connectivity, and multilingual operation.

WHY CHOOSE THIS?

Adjustable Resistance: Choose from 25 resistance levels with a range of 25–169 steps per minute.
Accessible Design: A large open platform, 9.8-inch step-on height, and full-length handlebars support convenient use.
Connected Console: Bluetooth, NFC, USB-A, and optional WiFi provide multiple connectivity options.
Service-Friendly Frame: A quick-replace repair shield cover provides access for equipment servicing.

PRODUCT HIGHLIGHTS

25 resistance levels with 25–169 steps per minute

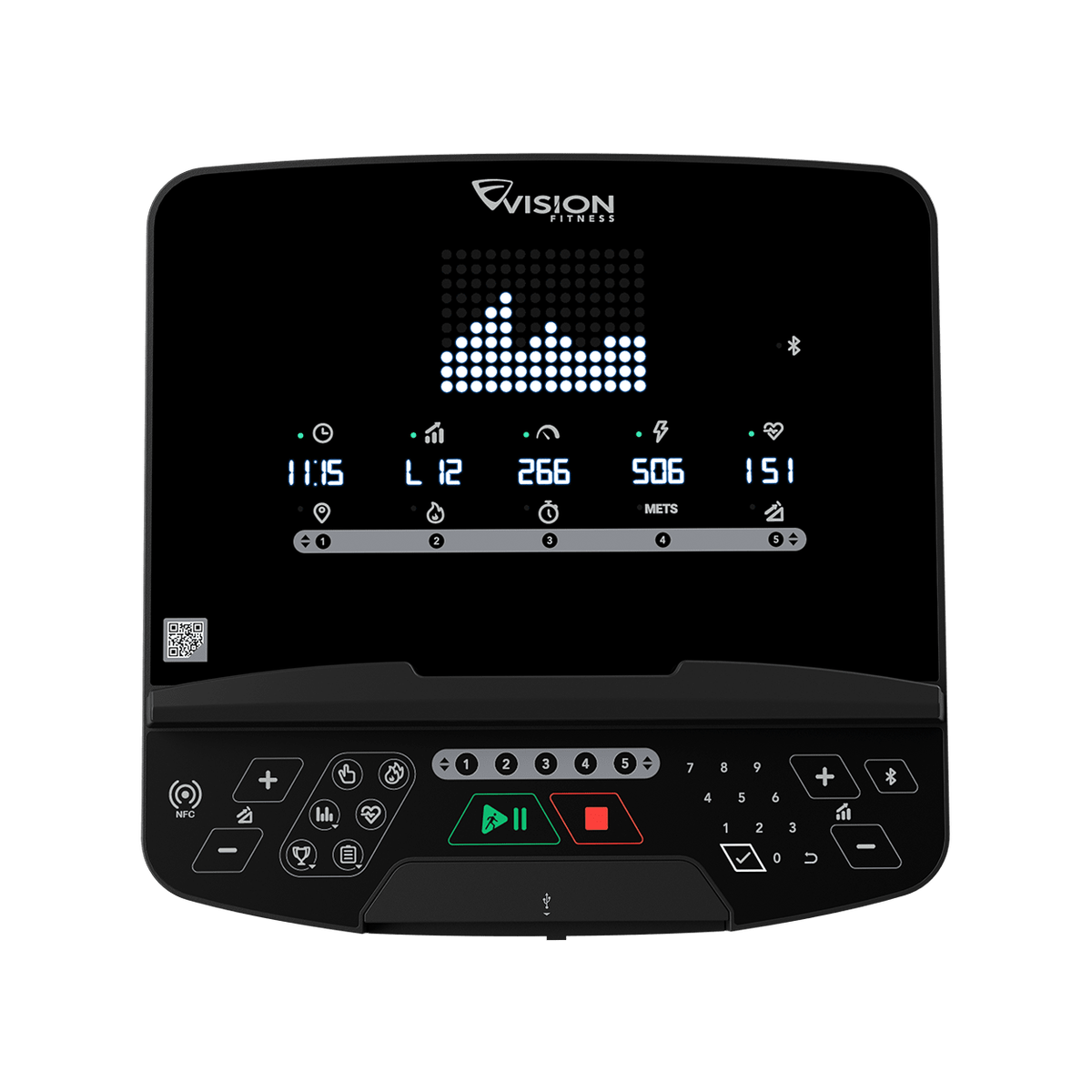

14 x 10 dot-matrix profile LEDs and 22 numeric LEDs
Full-length handlebars and 9.8-inch step-on height
Bluetooth, NFC, USB-A, and optional WiFi connectivity
400 lb maximum user weight

SPECIFICATIONS

Feature	Details
Product	Summit Stairclimber
Console	DLED Console, 16" Entertainment Display
Display	14 x 10 Dot-Matrix Workout Profile LEDs and 22 Numeric LEDs
Workouts	Go, Manual, Fat Burn, Intervals, Constant Watts*, Goal, Target Heart Rate, Fitness Tests
Languages	English, German, French, Italian, Spanish, Dutch, Portuguese, Russian, Polish
WiFi	Optional; Connection to Vision Asset Management
Bluetooth	Yes; Vision Fitness App, Heart Rate Device, or FTMS-Enabled Fitness App
USB Port	USB-A for Device Charging and Software Updates
Workout Feedback	Time, Distance, Resistance Level, Calories, Speed, RPM, Watts, METS, Heart Rate, Incline
NFC	Yes; One-Tap Connection to Vision Fitness App
Tablet Holder	Yes
QR Code	Yes; Console Demonstration Video and Vision Fitness App Download Link
Off-Mode Power Consumption	≤ 0.3 W
Standby Power Consumption	≤ 0.5 W
Serviceability	Quick-Replace Repair Shield Cover
Water Bottle Holders	2
Assembled Dimensions	55.8 x 32.4 x 81.5 in. (141.8 x 82.4 x 207 cm)
Auto-Stop Function	Frame-Mounted IR and User Detection
Contact & Telemetric Heart Rate	Yes
Drive System	ECB with Industrial-Grade Drive Chain and Belt
Handlebar Design	Full-Length Handlebars
Maximum User Weight	400 lb (182 kg)
Power Requirements	100–240 V, 50/60 Hz AC
Step Dimensions	11 x 18 x 8 in. (27.3 x 45.9 x 19.8 cm)
Step-On Height	9.8 in. (25 cm)
Levelers	4
Step Rate	25–169 Steps/Min
Assembled Weight	407 lb (185 kg)
Shipping Weight	529 lb (240 kg)
Resistance Levels	0–25
Recommended Ceiling Height	10 ft (3 m)
