Name: U50 Upright Cycle
Brand: Matrix
SKU: U50; XR-03-C
Price: 2499.0 USD
Availability: InStock

Matrix U50 upright bike with XUR console

Female resting on Matrix upright bike during recovery ride with back view showing relaxed posture and steady cardio use

Matrix U50 upright bike with XIR console showing device mirroring via HDMI connection

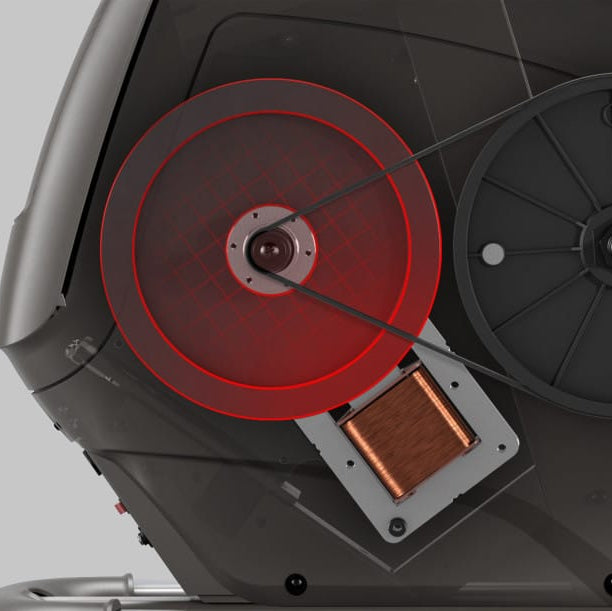

Matrix Exact Force induction brake system showing magnetic resistance technology for smooth and consistent cardio performance

Matrix U50 upright bike comfort arc seat

Matrix U50 upright bike adjustable handlebars with XUR console

Matrix U50 upright bike adjustable handlebars with XIR console

Matrix U50 upright bike adjustable handlebars with XER console

Matrix U50 upright bike adjustable handlebars with XR console

Matrix U50 upright bike with XER console

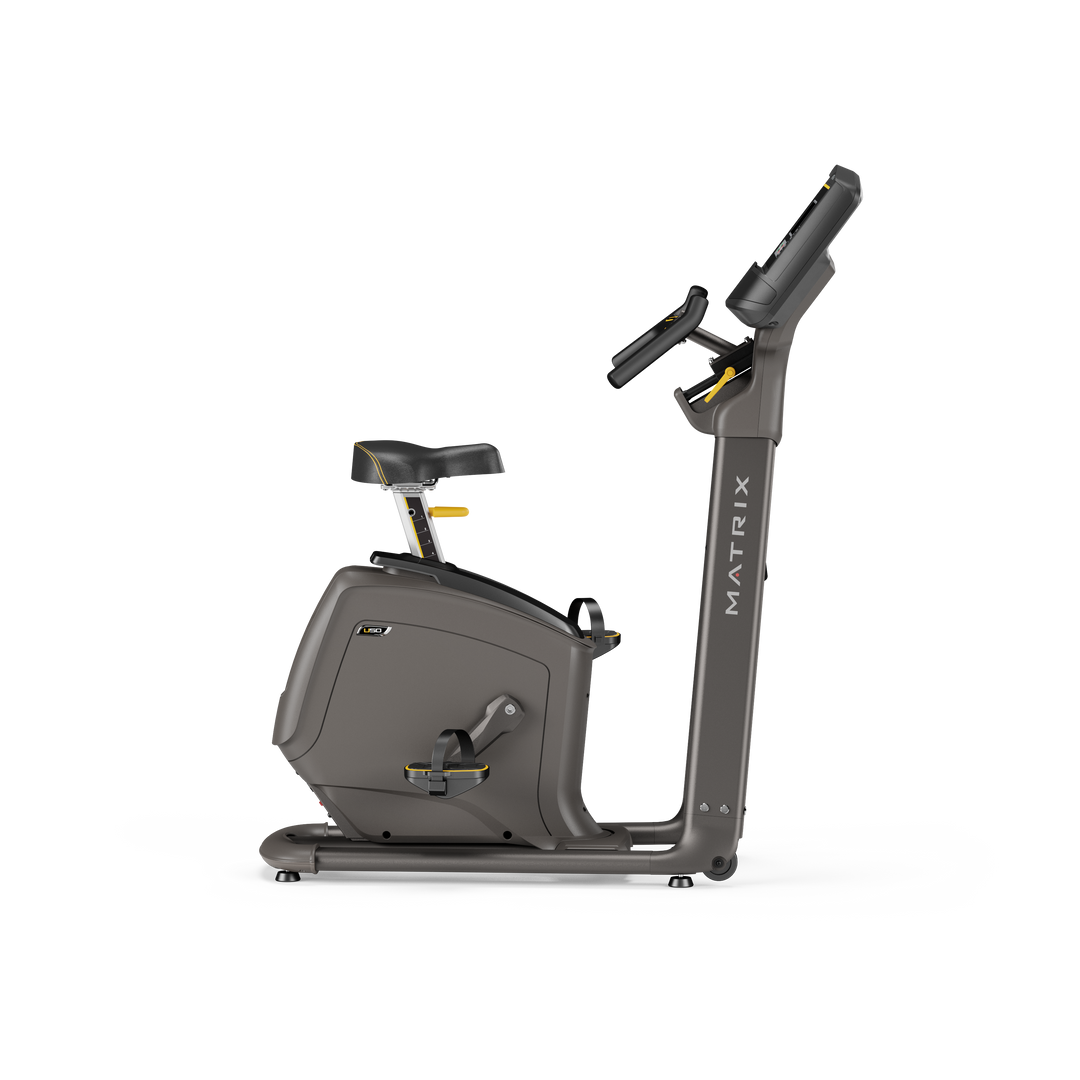

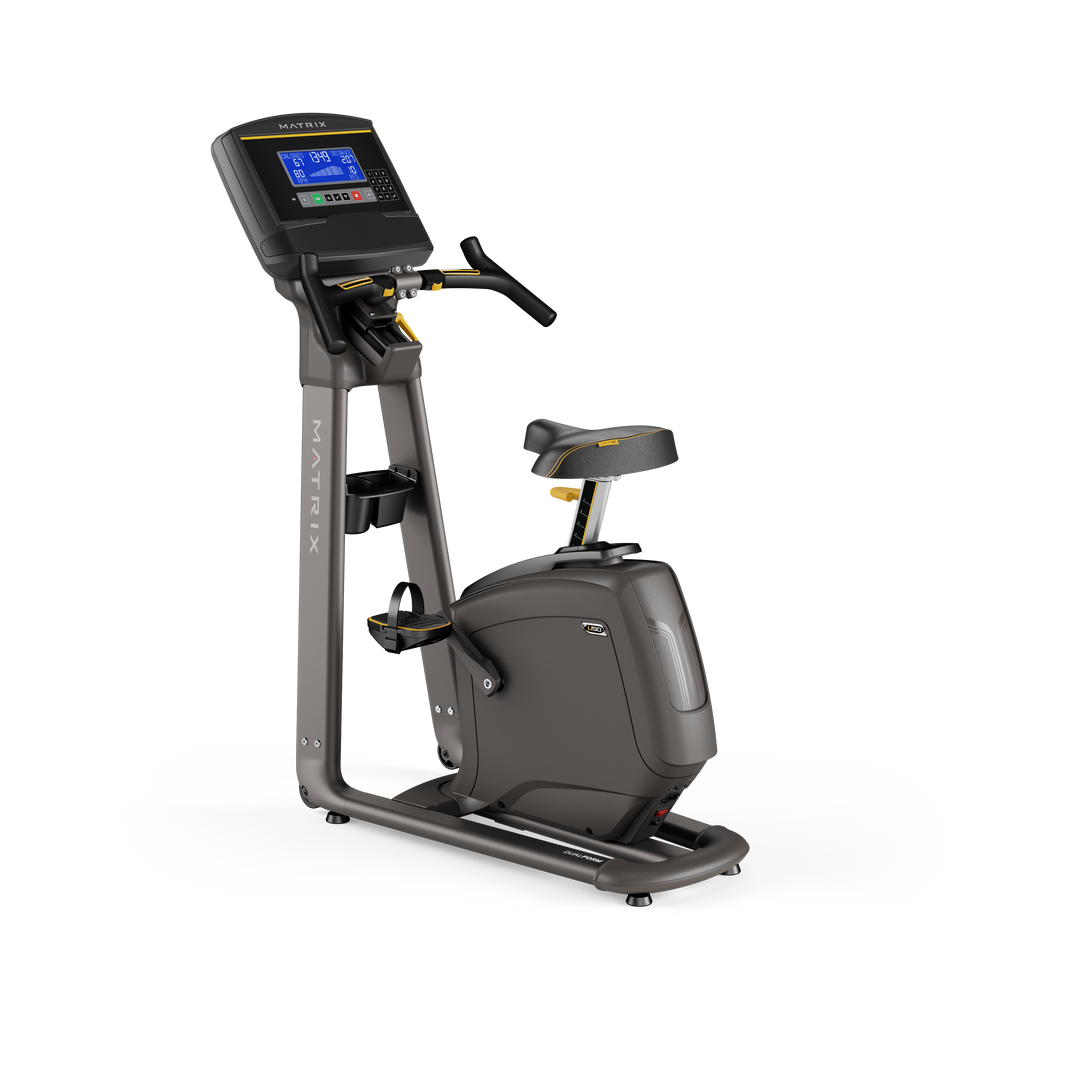

Matrix U50 upright bike with XR LED console, ergonomic seat, and smooth pedaling motion for home cardio workouts

Matrix U50 upright bike with XIR touchscreen console, ergonomic seat, and smooth pedaling motion for home cardio workouts

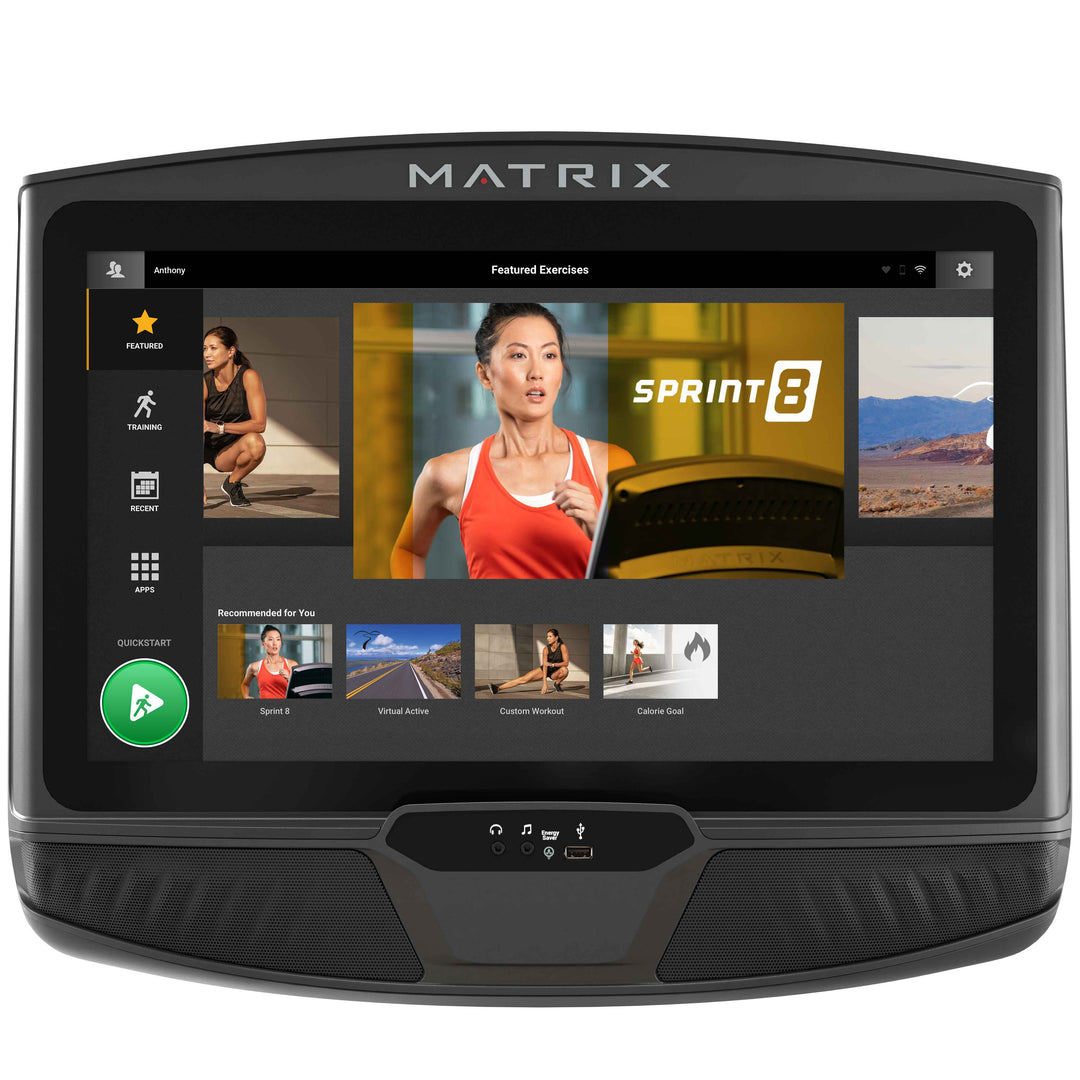

Front view of Matrix XUR console displaying Go Screen interface with workout metrics and intuitive navigation controls

Matrix XUR console with large HD touchscreen displaying apps and workout interface for connected cardio training

Matrix XIR console with touchscreen display showing entertainment apps and workout interface for cardio equipment

Matrix XER console with touchscreen interface displaying apps and workout controls for fitness machines

Matrix XR console with LED display showing workout metrics including calories, time, distance, incline, and speed for fitness equipment

$2,499.00

Console

XER

XIR

XUR

UPRIGHT BIKE CONTROL

The U50 Upright Cycle is designed for consistent indoor workouts with a focus on comfort and adjustability. Ideal for any home gym equipment setup, it complements an indoor cycling bike, exercise bike, or stationary bike routine. The step-through frame allows easy access, while the ergonomic seat and handlebars support proper positioning. With electronically adjustable resistance and smooth braking, it supports structured cardio sessions at home.

WHY CHOOSE THIS?

Step-through frame access: Makes mounting and dismounting simple for a wide range of users.
Adjustable comfort design: Seat, handlebars, and pedals can be tailored for personalized fit.
Smooth resistance system: Induction braking delivers consistent and controlled performance.
Home workout versatility: Suitable for daily cardio routines in compact home gym setups.

KEY FEATURES

Resistance levels: 30 electronically adjustable resistance settings.
Resistance system: Exact Force induction brake system.
Frame design: Dual Form step-through upright frame.
Handlebars: Adjustable multi-grip handlebars with resistance toggles and heart rate grips.
Seat adjustment: Up/down adjustment via easy-lift lever.
Seat type: Comfort Arc upright seat, interchangeable.
Pedals: Oversized, self-balancing pedals with adjustable straps.
Pedal spacing: 7.6” spacing for ergonomic alignment.
Display: 22” class HD touchscreen (console dependent).
Connectivity: Compatible with XUR, XIR, XER, and XR consoles and Bluetooth FTMS apps.
Extras: Water bottle holder included.
Power requirements: 120V AC, 15A circuit.
User height range: 4’11”–6’4”.
Workout programs: iFIT enabled with included membership.

CONSOLE MODELS

XUR	Our all-new, premium 55.9 cm / 22" console offers our largest and brightest HD touchscreen display to bring your virtual journeys, movies and videos to life. Includes WiFi, Bluetooth and an HDMI port to stream whatever moves you. Not compatible with Matrix 30 series or ICR50.
XIR	Our 40.6 cm / 16" console features a brilliant HD touchscreen display to bring your virtual journeys, movies and videos to life. Includes WiFi, Bluetooth and an HDMI port to stream whatever moves you. Compatible with all Matrix frames except ICR50.
XER	Our XER console includes a clear 25.4 cm / 10" touchscreen display and an intuitive home screen that offers easy access to entertainment. Includes WiFi and Bluetooth. Compatible with all Matrix frames except ICR50.
XR	Our XR console features a clean, bright 21.6 cm / 8.5" LCD display that makes it easy for you to check your workout data at a glance, keeping you on track to reach and surpass your goals. Compatible with all Matrix frames except ICR50.

SPECIFICATIONS

Assembled dimensions	48” x 24.6” x 56.3”
Product weight	152 lbs
Assembled weight	132 lbs
Max user weight	350 lbs
User height range	4’11”–6’4”
Pedal spacing	7.6”
Resistance range	30 levels
Resistance system	Exact Force induction brake
Frame type	Dual Form step-through upright
Power requirements	120V AC, 15A circuit
Display	22” class HD touchscreen
Warranty	Lifetime frame, 7 years parts, 2 years labor
