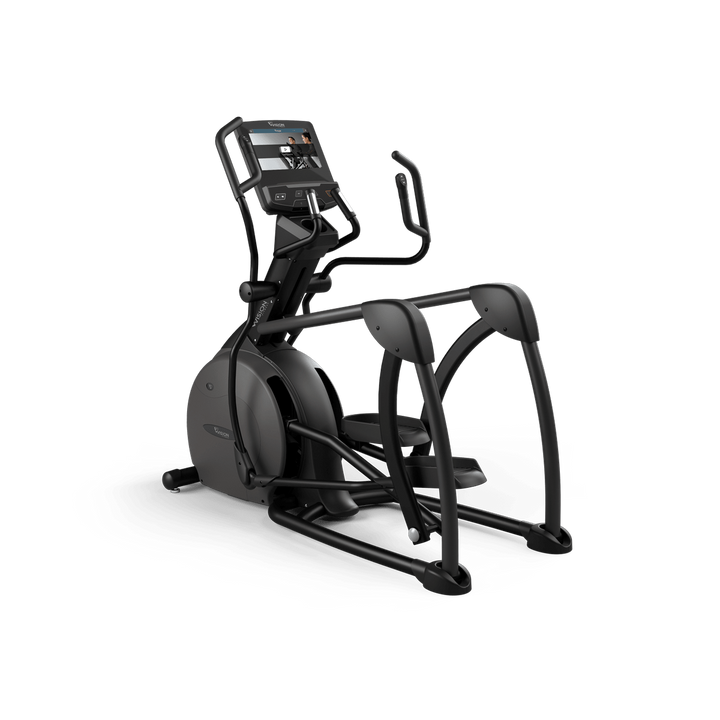

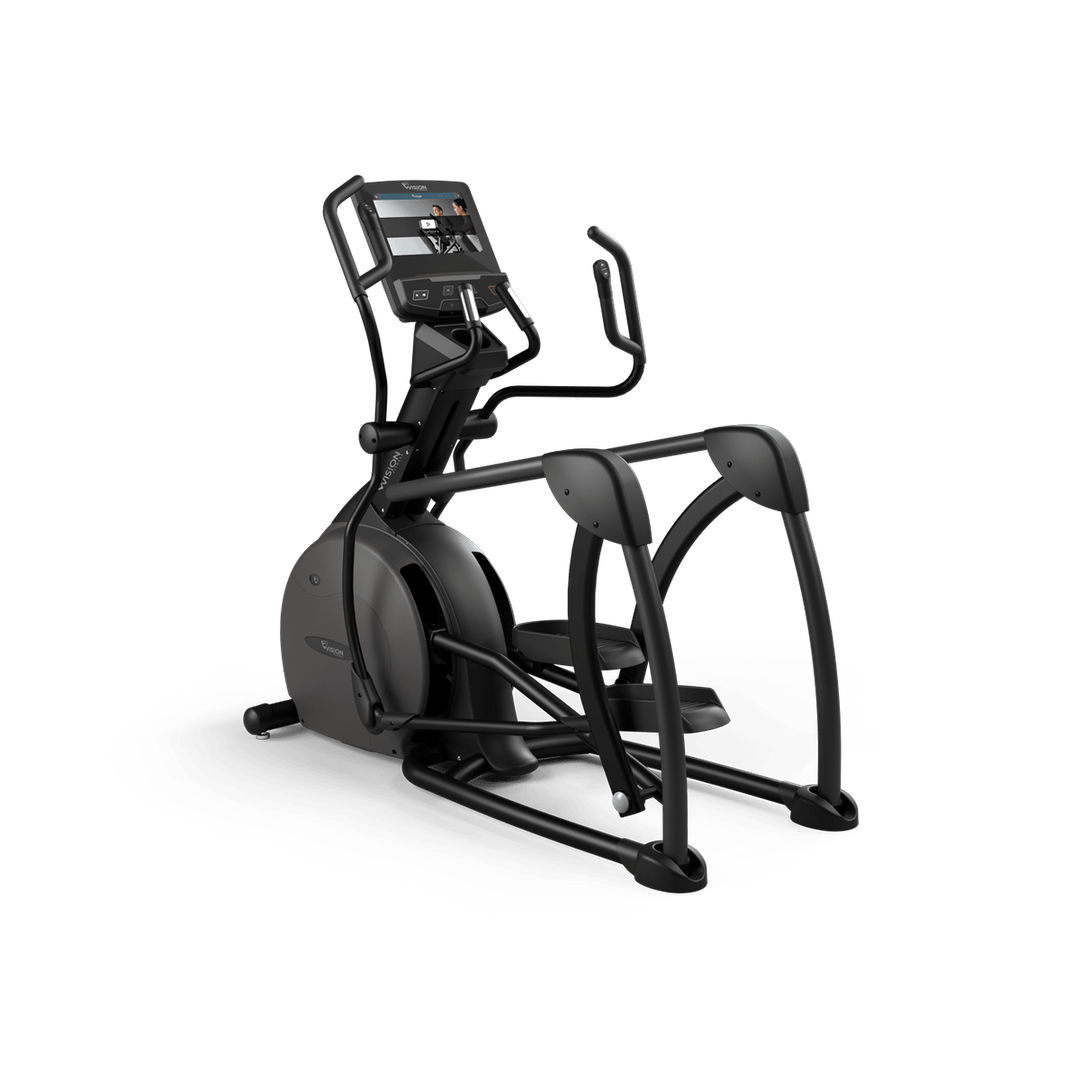

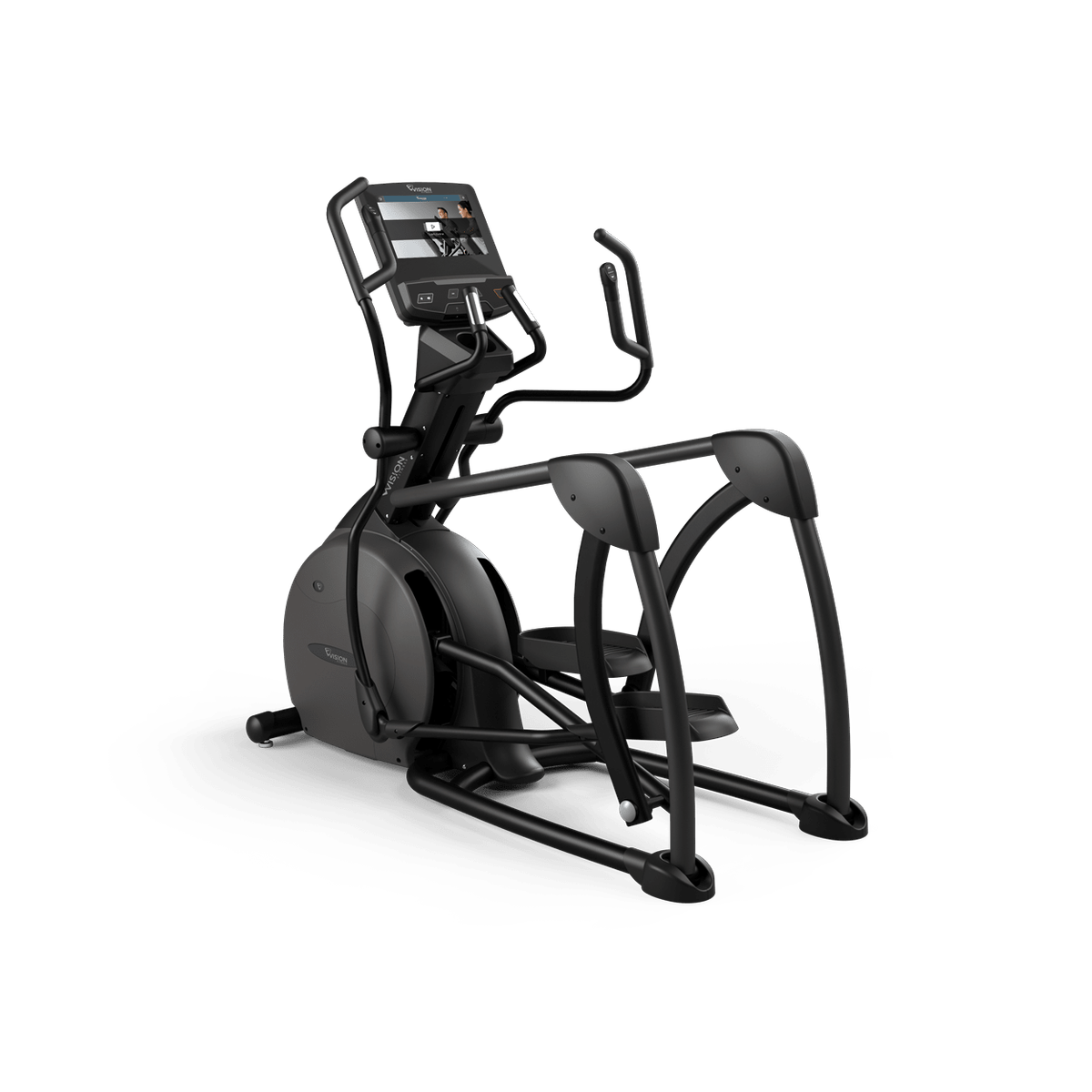

Angled view of Vision Fitness S70/S700E Ascent Trainer with dual-action handlebars and pedals
Side view of Vision Fitness S70/S700E Ascent Trainer showing the suspension design and pedals

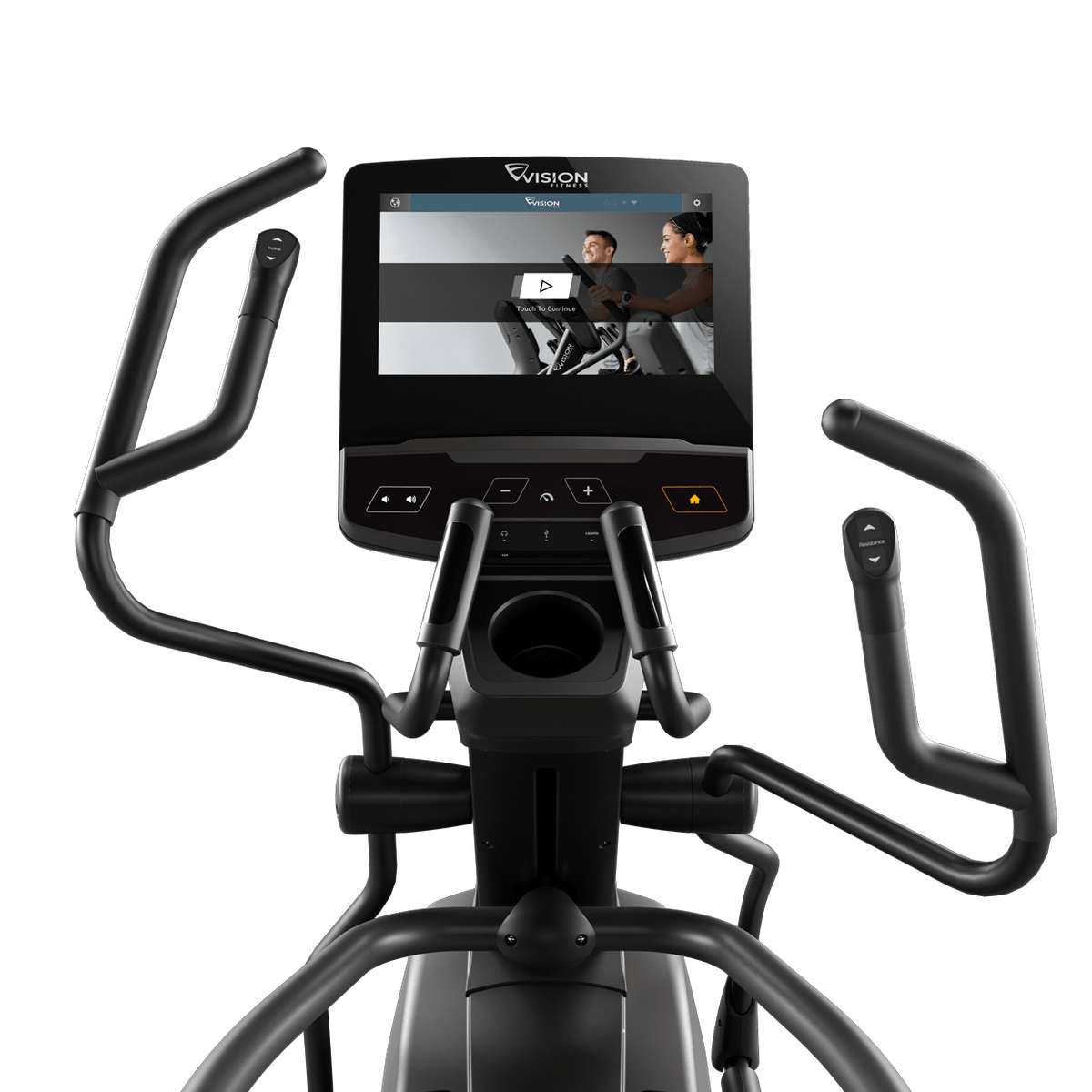

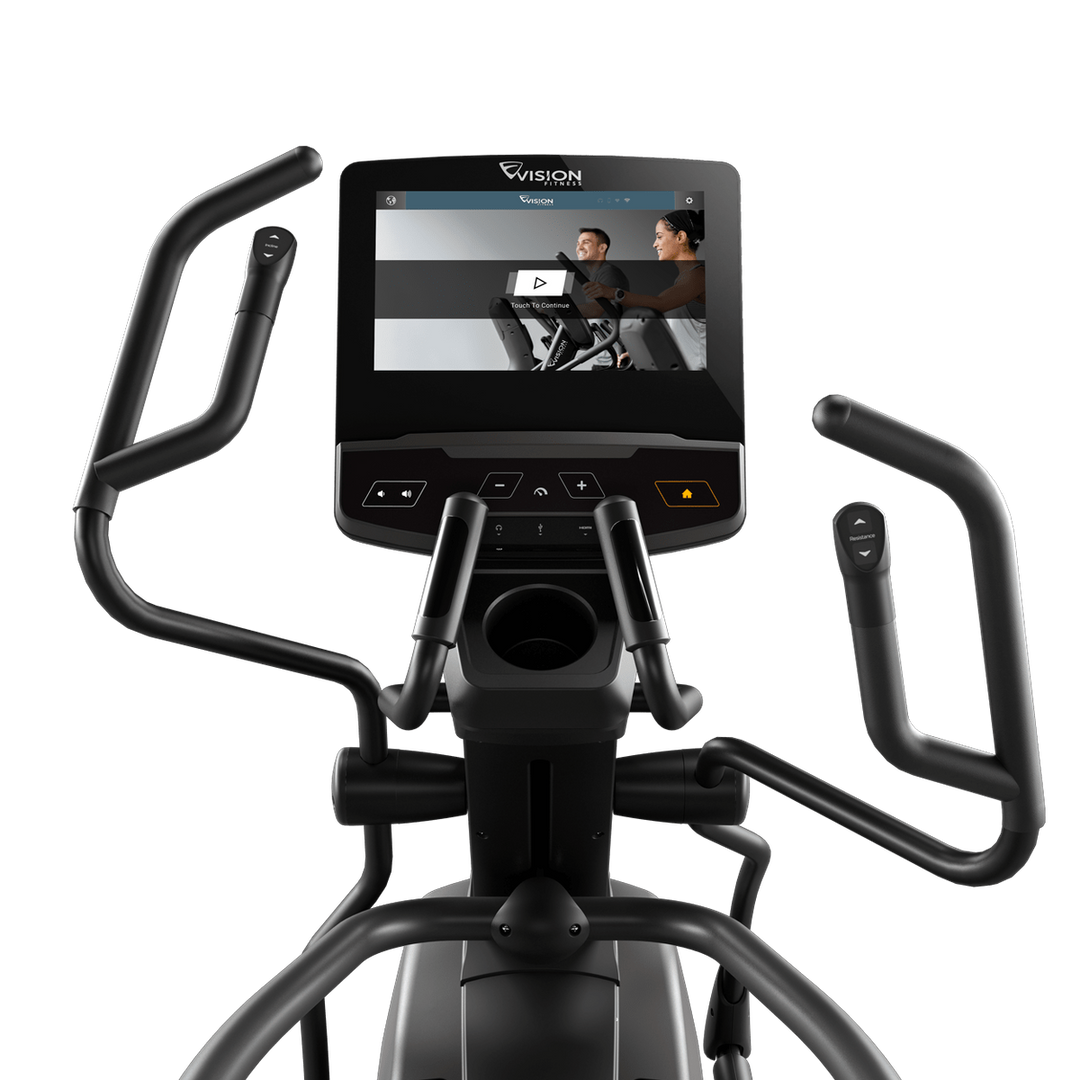

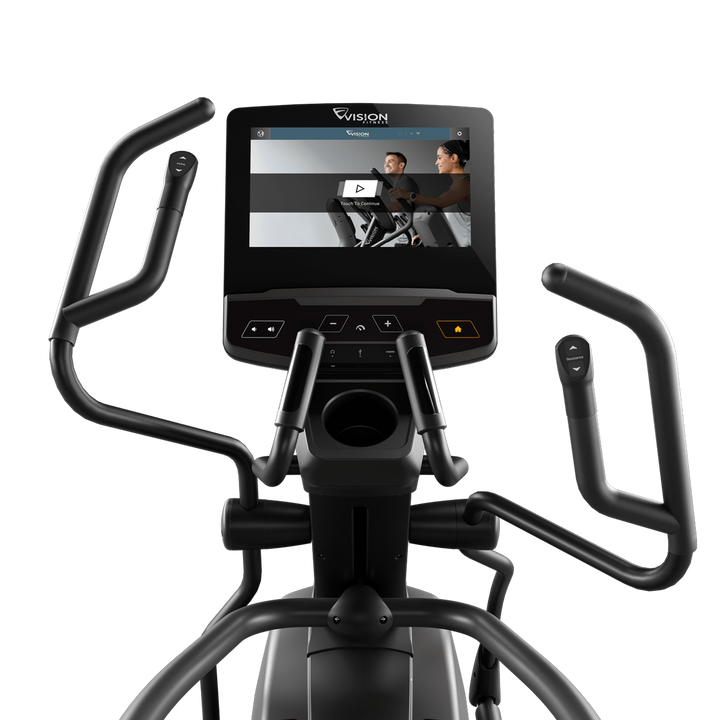

Vision Fitness S700E Ascent Trainer with 16-inch Entertainment Console and multi-position handlebars

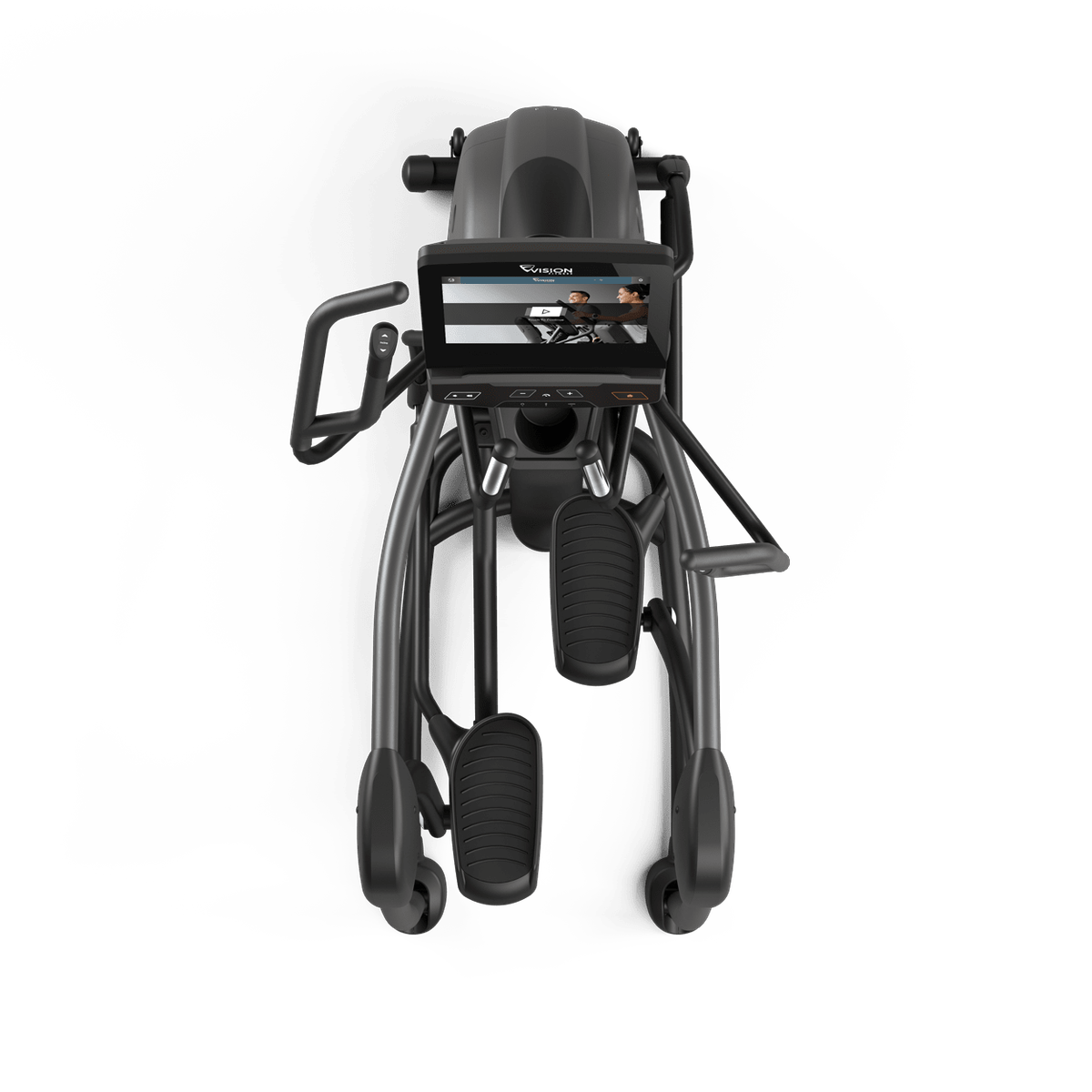

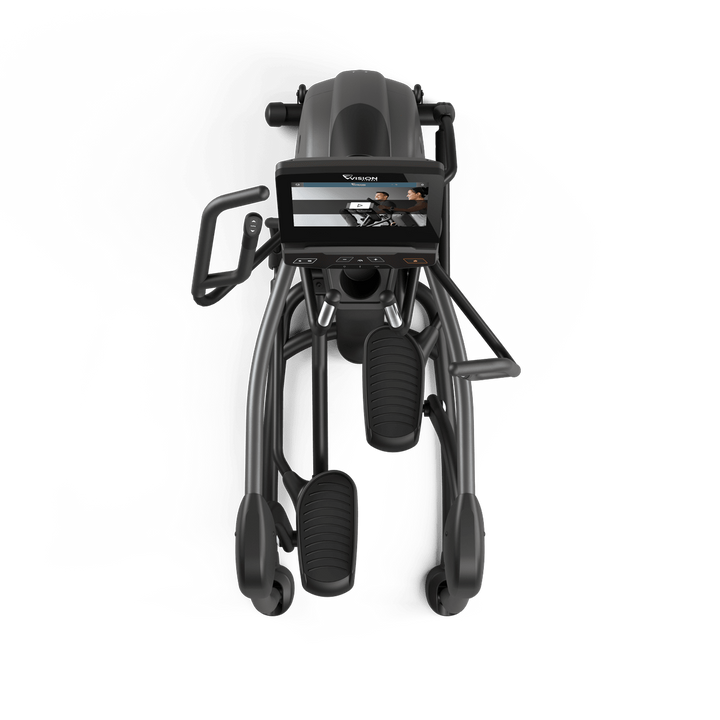

Rear view of Vision Fitness S70/S700E Ascent Trainer showing suspension frame, pedals, and handlebars

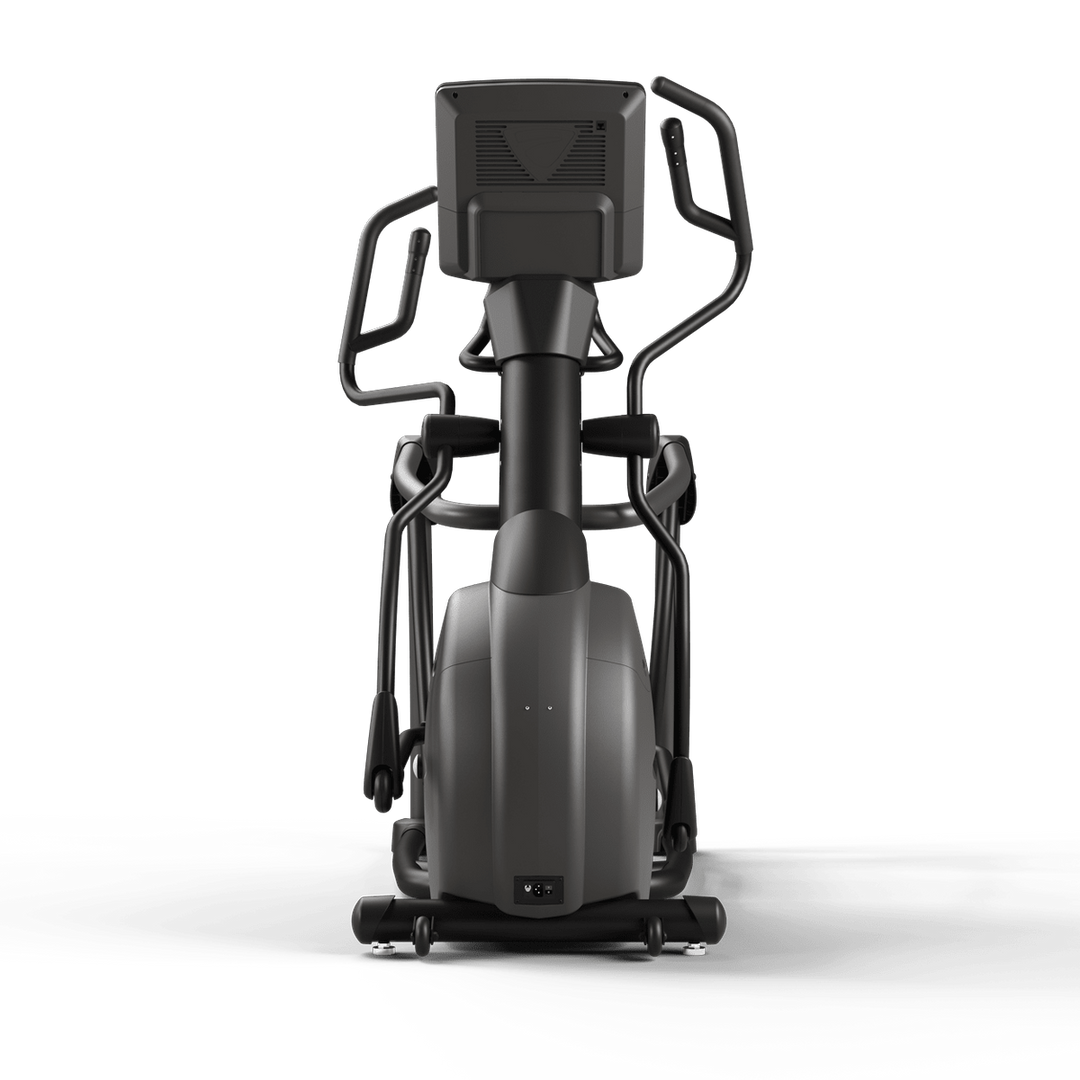

Full front view of Vision Fitness S70/S700E Ascent Trainer showing console, handlebars, frame, and pedals

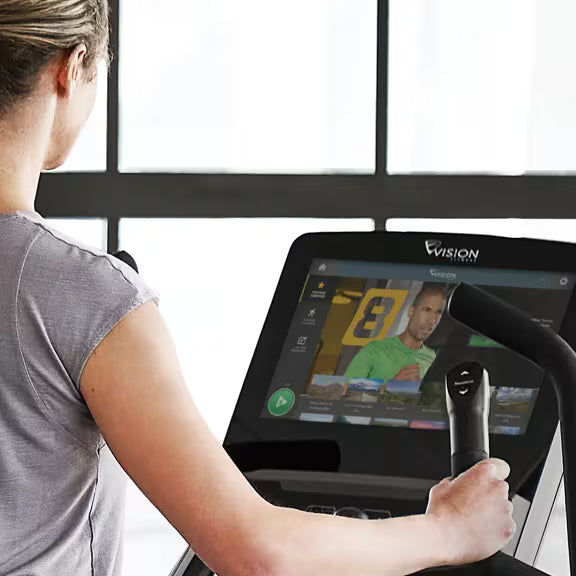

Person using the touchscreen controls on a Vision Fitness S700E Ascent Trainer Entertainment Console

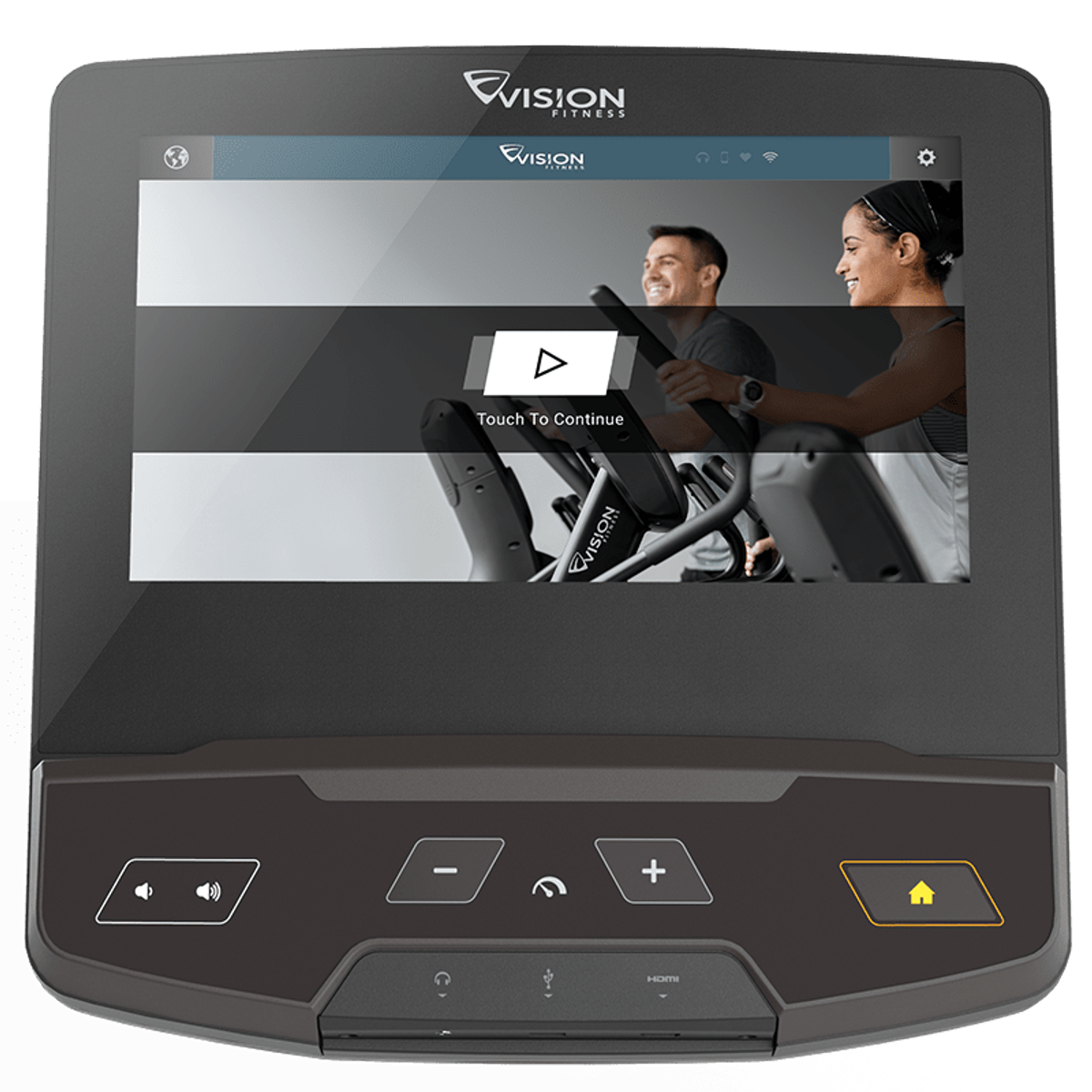

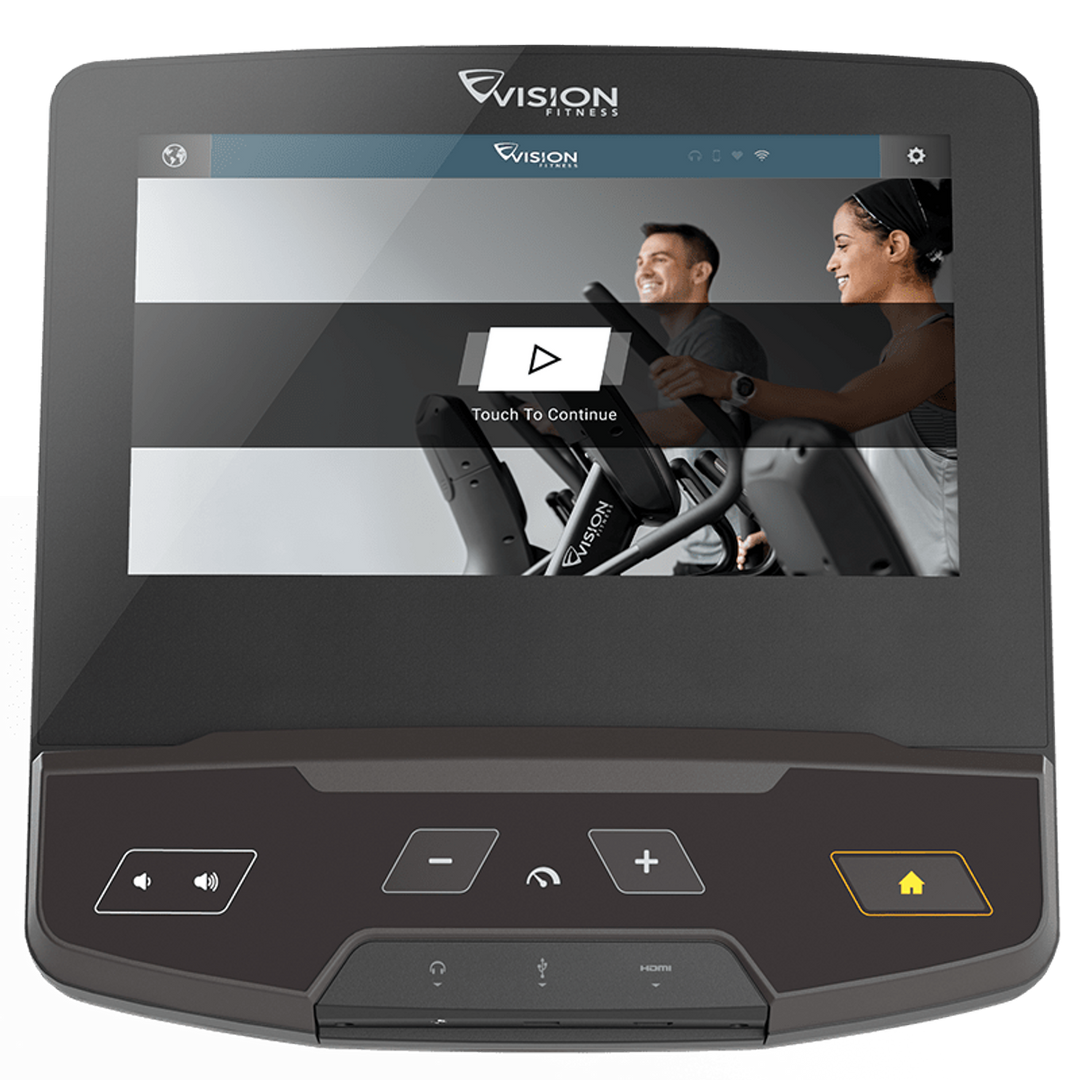

Vision Fitness S700E Ascent Trainer 16-inch capacitive touchscreen Entertainment Console

S700E Entertainment Suspension Trainer w/Power Incline

Regular price$8,799.00
/

IMMERSIVE CARDIO WITH ADVANCED ENTERTAINMENT TECHNOLOGY

The Vision Fitness S700E Ascent Trainer pairs the same premium variable-stride performance of the S-Series with a vibrant 16" capacitive touchscreen Entertainment Console. Featuring a 20"–23" variable stride, 15%–37% power incline, 20 resistance levels, and integrated Bluetooth connectivity, the S700E delivers an engaging and highly customizable cardio experience for users who want advanced workout programming and entertainment options.

WHY CHOOSE THIS?

  • 16" Touchscreen Entertainment Console: Large HD touchscreen provides intuitive workout controls, advanced programming, and entertainment connectivity.
  • Extensive Workout Programs: Includes Sprint 8, Virtual Active, interval training, heart rate workouts, fitness testing, calorie goals, and custom programs.
  • Variable Stride Training: Automatically adjusts between 20"–23" stride lengths for greater workout variety and natural movement patterns.
  • Connected Fitness Experience: Bluetooth, HDMI input, WiFi connectivity, and USB charging help keep users engaged throughout every workout.
  • Commercial-Level Performance: Suspension design, power incline system, and durable frame deliver smooth and reliable operation.

PRODUCT HIGHLIGHTS

  • 16" capacitive touchscreen display
  • Built-in Sprint 8 and Virtual Active programs
  • WiFi, Bluetooth, HDMI, and USB connectivity
  • 20"–23" variable stride length
  • 15%–37% power incline range
  • 20 resistance levels
  • 2-stage generator resistance system
  • Multi-position dual-action handlebars
  • Bluetooth heart rate and headphone compatibility
  • 400 lb user weight capacity

SPECIFICATIONS

Feature Details
Product Vision Fitness S700E Ascent Trainer
Console 16" Entertainment Console
Display 16" Class Capacitive Touchscreen LCD
Programs Go, Manual, Sprint 8, Virtual Active, Target Heart Rate, Interval Training, Fat Burn, Rolling Hills, Constant Watts, Glutes, Time Goal, Distance Goal, Calorie Goal, Fitness Test, Custom
Languages Multiple Language Support
Heart Rate Contact, Telemetric, Bluetooth
WiFi Yes
Bluetooth Heart Rate, Headphones, FTMS Data Sharing
USB Port Charging, Media Playback, Software Updates
HDMI Input Yes
CSAFE Yes
Frame Type Ascent Trainer
Variable Stride Length 20"–23" (51–58 cm)
Step-On Height 8.5" (21.6 cm)
Power Incline 15%–37%
Resistance System 2-Stage Generator
Resistance Levels 20
Pedals Oversized with Rubber Inserts
Pedal Spacing 2" (5.1 cm)
Handlebars Multi-Position Dual Action with Incline/Resistance Controls
Extras Water Bottle Holder, Reading Rack
Dimensions 75" L x 35" W x 68" H
Product Weight 360 lb (163.5 kg)
Max User Weight 400 lb (182 kg)
Power Requirements 100–240 V, 50/60 Hz AC
