HumanSport Freedom Trainer

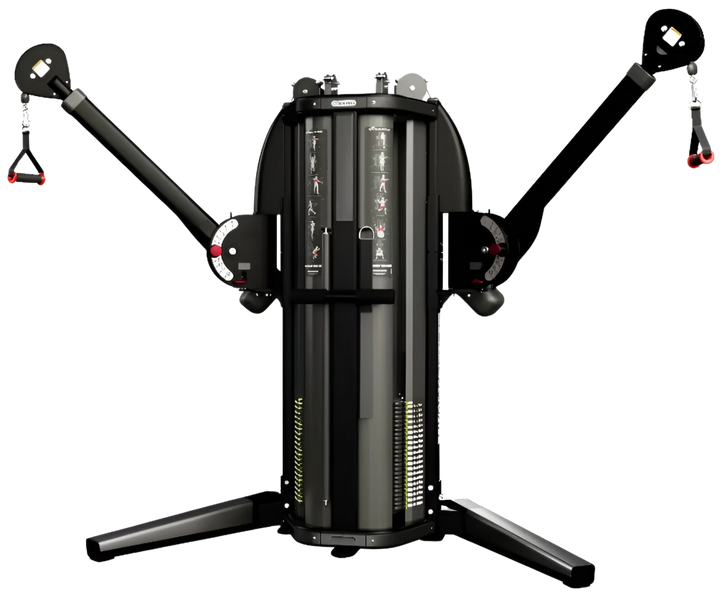

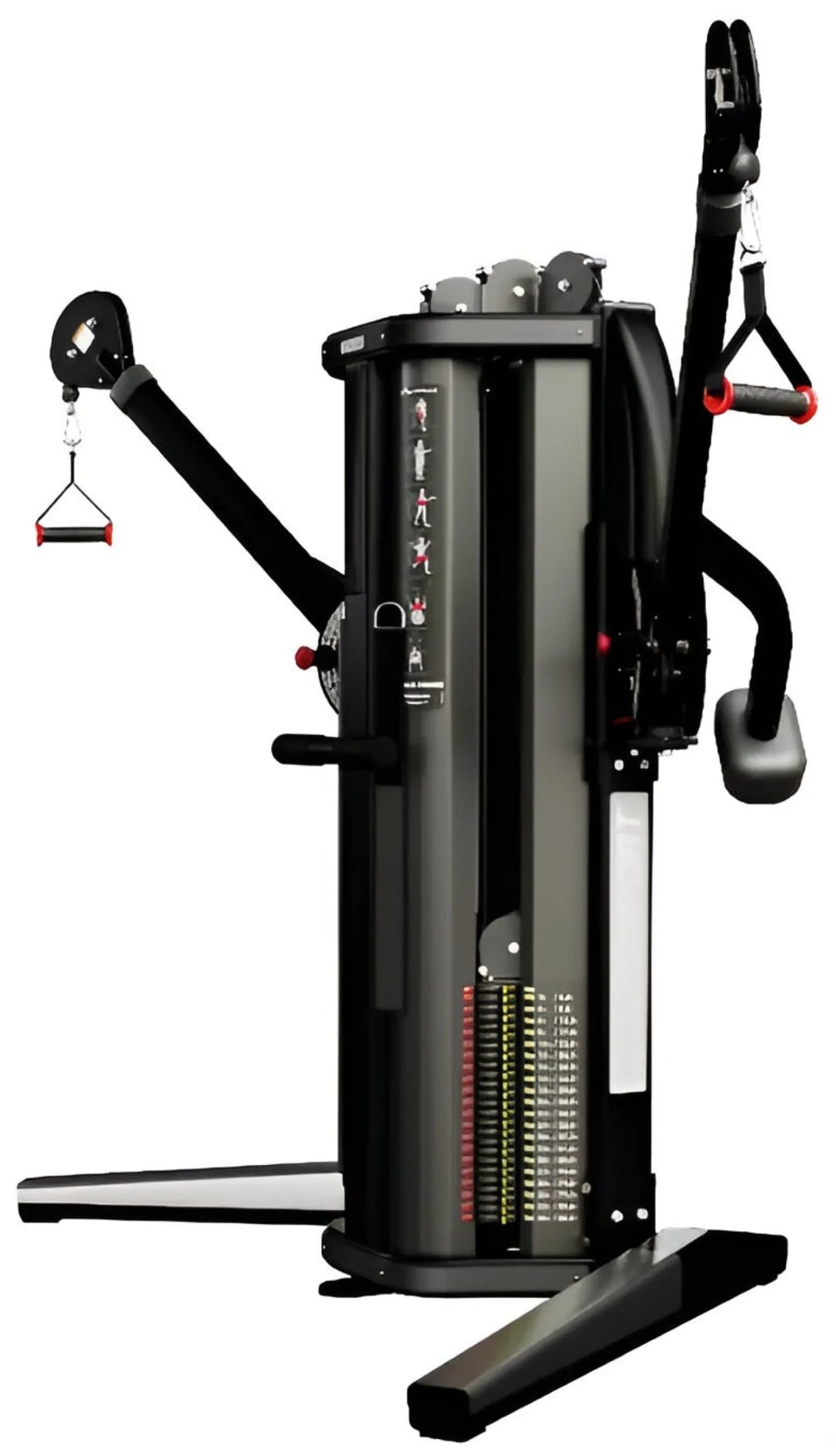

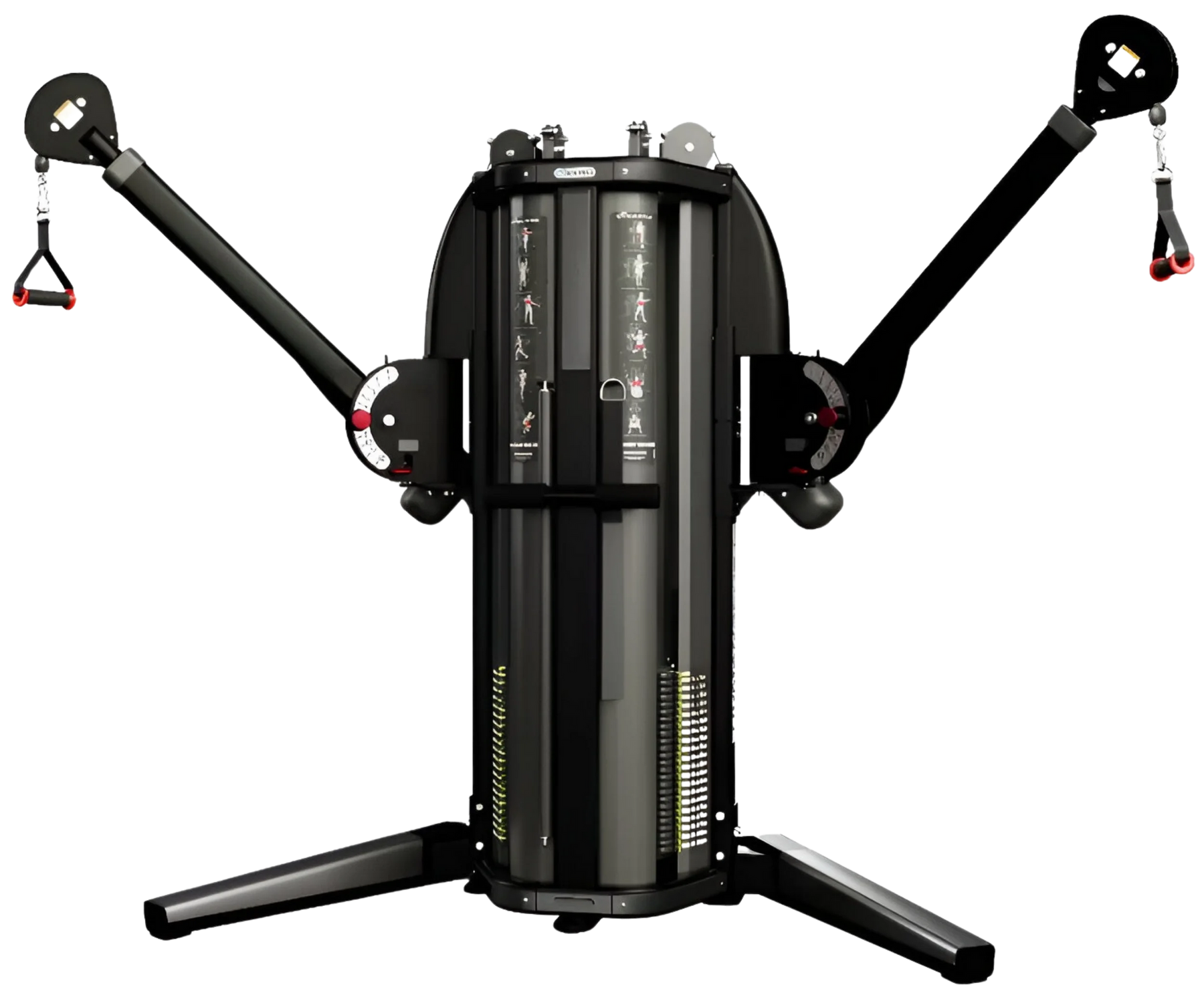

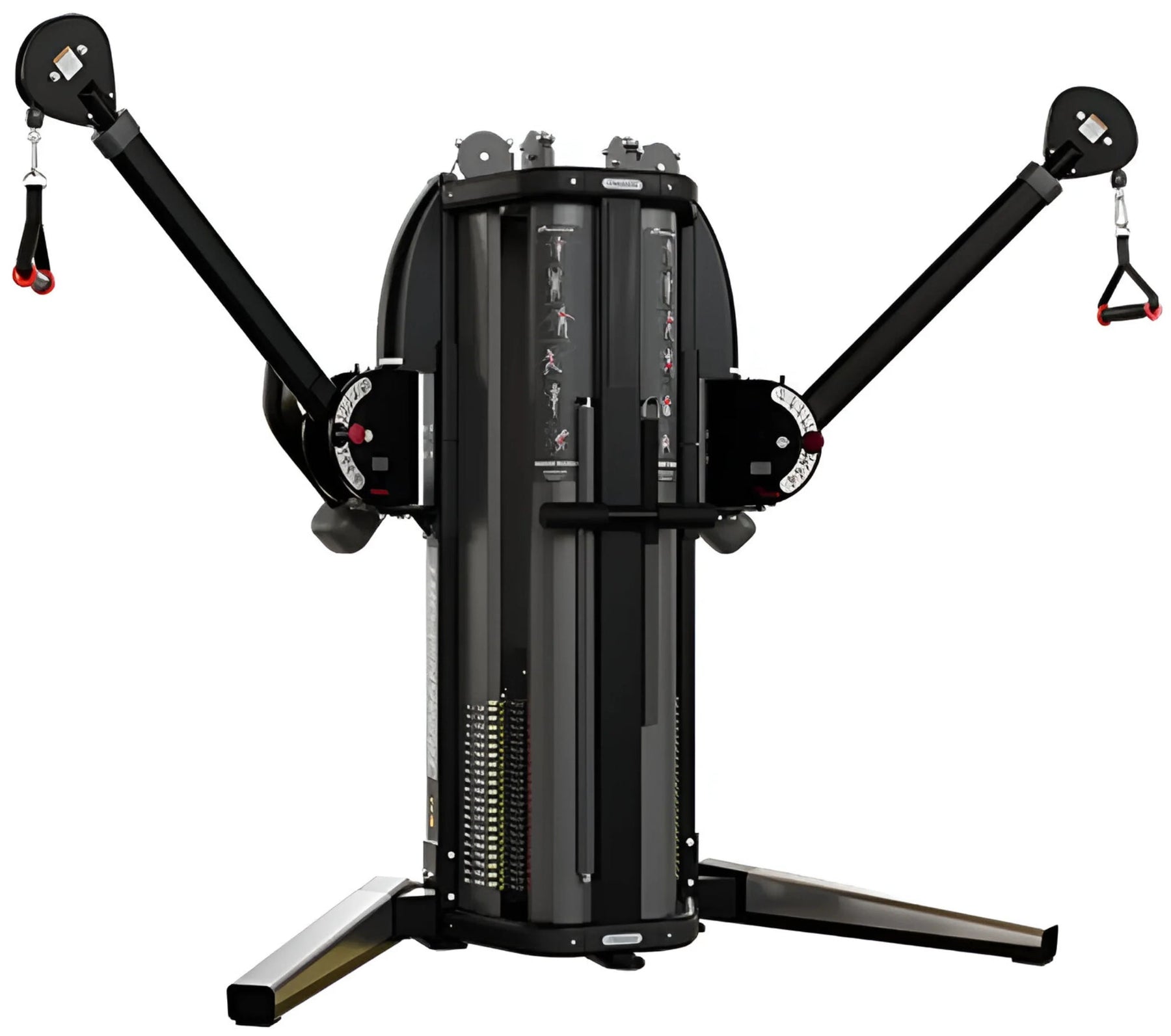

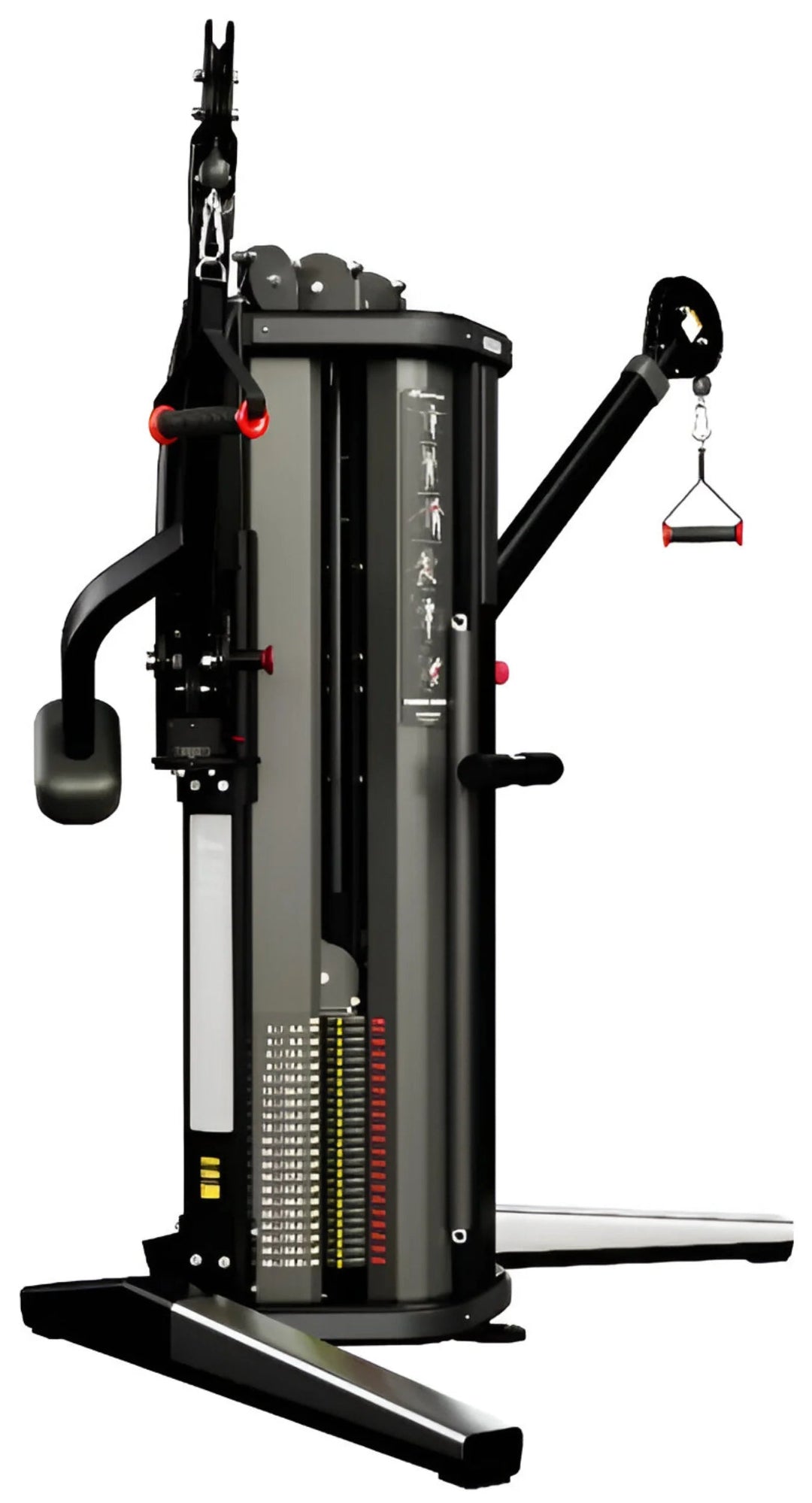

Nautilus HumanSport Freedom Trainer
Description
The Nautilus HumanSport Freedom Trainer is designed to provide a natural, unrestricted training experience that adapts to users of all fitness levels. Featuring dual independent weight stacks and a highly adjustable cable system, this versatile functional trainer supports a wide variety of strength, athletic, and rehabilitation-focused exercises.
Engineered for user-defined movement, the Freedom Trainer allows exercises to be performed through multiple planes of motion, helping improve strength, stability, coordination, and overall athletic performance. Its intuitive design, smooth cable operation, and extensive adjustment range make it an ideal solution for commercial fitness facilities, training studios, rehabilitation centers, and wellness programs.
With ample cable travel, independent movement arms, and a compact footprint, the Freedom Trainer delivers a comprehensive full-body workout while accommodating a wide range of training styles and user abilities.
Features
- Dual independent enclosed weight stacks support individual or partner training
- Effective resistance of 80 lbs (36 kg) per handle
- Cable-driven system allows for user-defined movement paths
- Nine horizontal adjustment positions and twelve vertical adjustment positions
- 3:1 pulley ratio with 9.5 ft (289.5 cm) of training space and 113 in (287 cm) of cable travel
- Suitable for both controlled resistance exercises and explosive athletic movements
- Integrated ballet bar for stretching, stability, and mobility exercises
- Includes hand grips, ankle strap, and padded exercise bar
- Exercise placards display 12 guided exercises with visual instructions
- Front and rear access to guide rods simplifies maintenance
- Flat-back tower design allows placement against walls, columns, or adjacent equipment
- Streamlined cable replacement process
- Roller bearings provide smooth, consistent motion
- Fits through standard doorways for easier installation and relocation
- Open-top design allows quick visual cable inspection
- Three designated floor bolt locations
- Stainless steel wear plates for enhanced durability
Wheelchair Accessibility
- 3:1 cable ratio provides a low starting resistance
- Lock N Load™ technology enables quick and intuitive weight selection
- Counterbalanced adjustment arms can be repositioned with minimal effort
- Open design accommodates wheelchair access and maneuverability
Adjustments & Movement
- Multiple cable positions support movement through various planes of motion
- Nine horizontal and twelve vertical adjustment settings
- Counterbalanced adjustment arms for easier repositioning
- Color-coded adjustment points improve usability
- Independent cable arms support unilateral and bilateral exercises
- User-controlled converging and diverging movement patterns
- 3:1 pulley ratio with extended cable travel for functional training applications
Frame & Construction
- Durable electrostatic powder-coated finish
- Heavy-duty 4 mm cable-driven system
- Three integrated floor bolt-down locations
- Protective rubber feet help reduce floor wear
- Commercial-grade steel construction utilizing a blend of square and round tubing
- Stainless steel wear plates for long-term durability
- Hex and button-head hardware throughout the frame
User Experience
- Integrated exercise placards with start and finish position diagrams
- Multi-language placard options available
- Oversized rubber stabilization grips for improved comfort and control
- Open design promotes ease of access
- Integrated storage for included training attachments
Lock N Load™ Weight Selection
Lock N Load™ technology simplifies weight changes by replacing traditional selector pins with an intuitive switch-based system. Users can quickly engage or disengage weight plates using color-coded controls, making resistance adjustments faster and more convenient. This innovative design also reduces maintenance requirements by eliminating misplaced or worn selector pins.
Technical Specifications
Dimensions
- Product Footprint: 43" L × 75" W × 72" H (108 × 191 × 182 cm)
- Width with Arms Fully Extended: 125" (317 cm)
- Height with Arms Fully Raised: 92" (234 cm)
- Product Weight: 1,100 lbs (499 kg)
Weight Stack Information
- Dual independent enclosed weight stacks
- Effective resistance: 80 lbs (36 kg) per handle
- Actual weight stack weight: 240 lbs (109 kg) per side
- Weight stack tower height: 68.5 in (174 cm)
- Weight stack shrouds constructed from steel
- Lock N Load™ weight selection system included
- Accessory storage included for:
- Hand Grips (2)
- Ankle Strap
- Long Exercise Bar
Warranty
Commercial Use
(Facilities charging membership dues and/or operating more than 8 hours per day)
- 10-Year Structural Frame Warranty
- 5-Year Coverage on Major Mechanical Components
- 1-Year Coverage on Minor Mechanical Components
- 90-Day Upholstery Warranty
- 1-Year Labor Warranty
Light Commercial Use
(Non-dues-paying facilities operating fewer than 8 hours per day)
- 10-Year Structural Frame Warranty
- 5-Year Coverage on Major Mechanical Components
- 3-Year Coverage on Minor Mechanical Components
- 90-Day Upholstery Warranty
- 3-Year Labor Warranty
Residential Use
- 10-Year Structural Frame Warranty
- 10-Year Coverage on Major Mechanical Components
- 10-Year Coverage on Minor Mechanical Components
- 90-Day Upholstery Warranty
- 3-Year Labor Warranty
