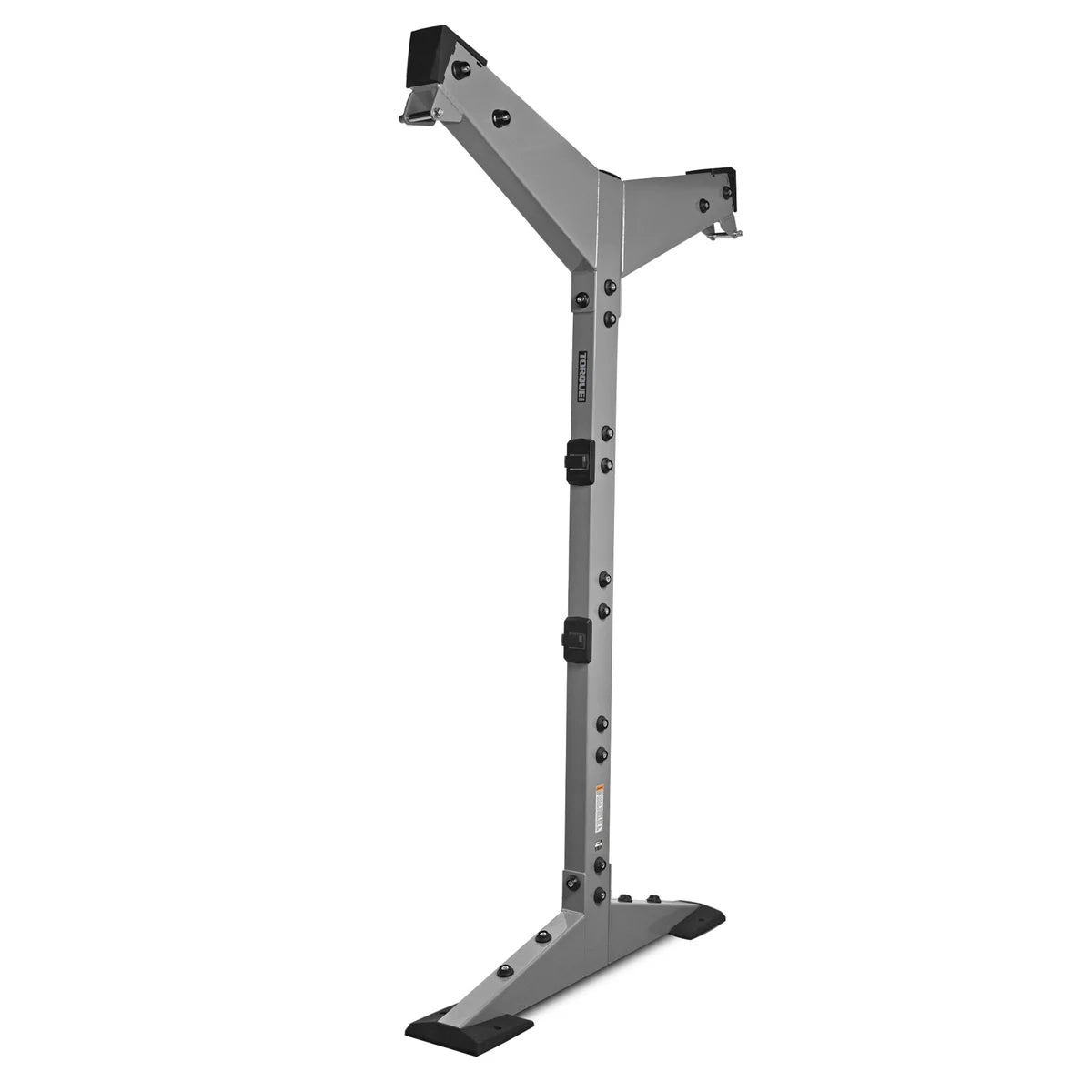

X-CREATE 2-sided 8 ft upright in Platinum with Y-shaped upper brackets, vertical steel post, and angled base feet.

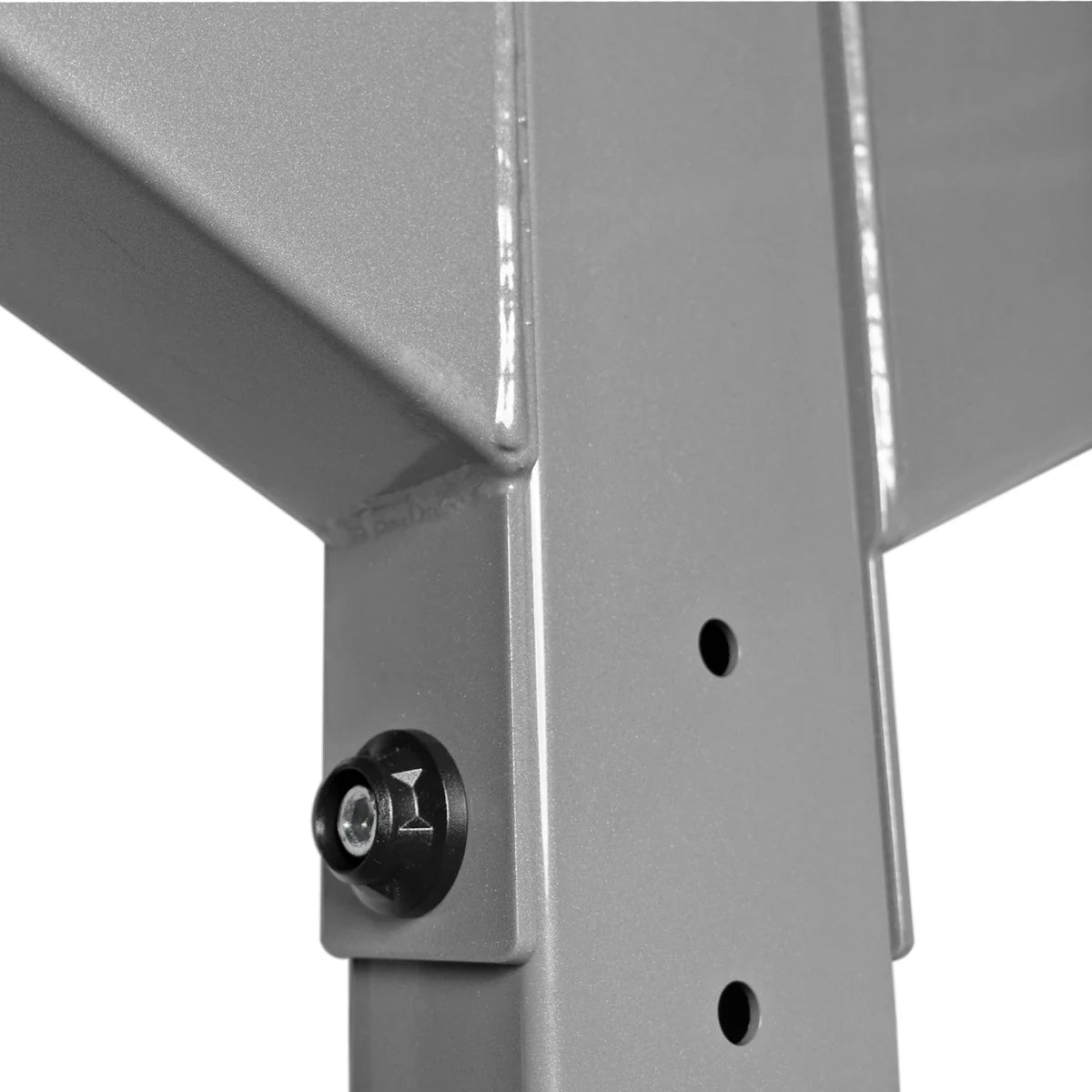

Close-up of X-CREATE 2-sided 8 ft upright in Platinum showing the steel upper bracket connection and mounting holes.

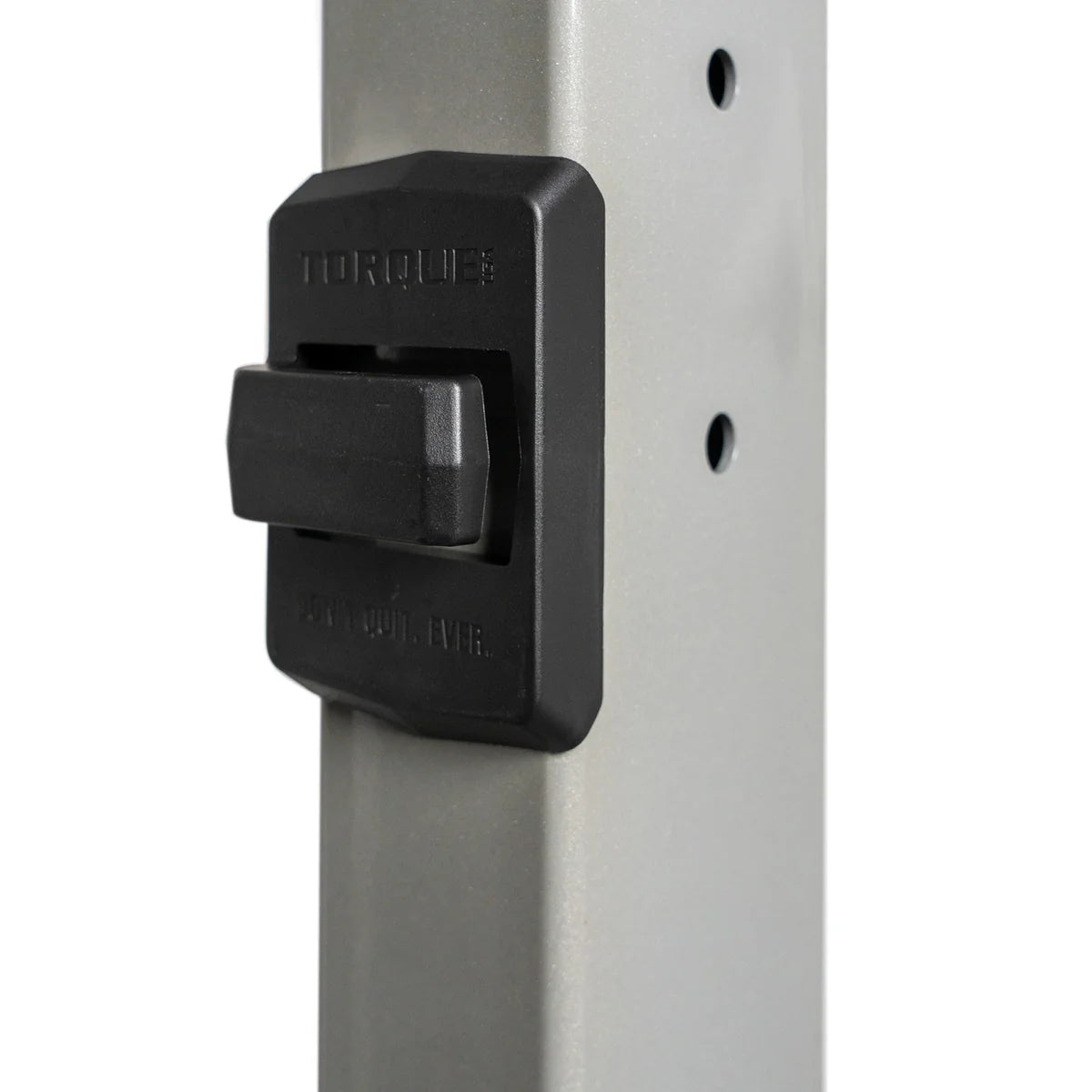

Close-up of X-CREATE 2-sided 8 ft upright in Platinum featuring a black magnetic suspension strap holding clip.

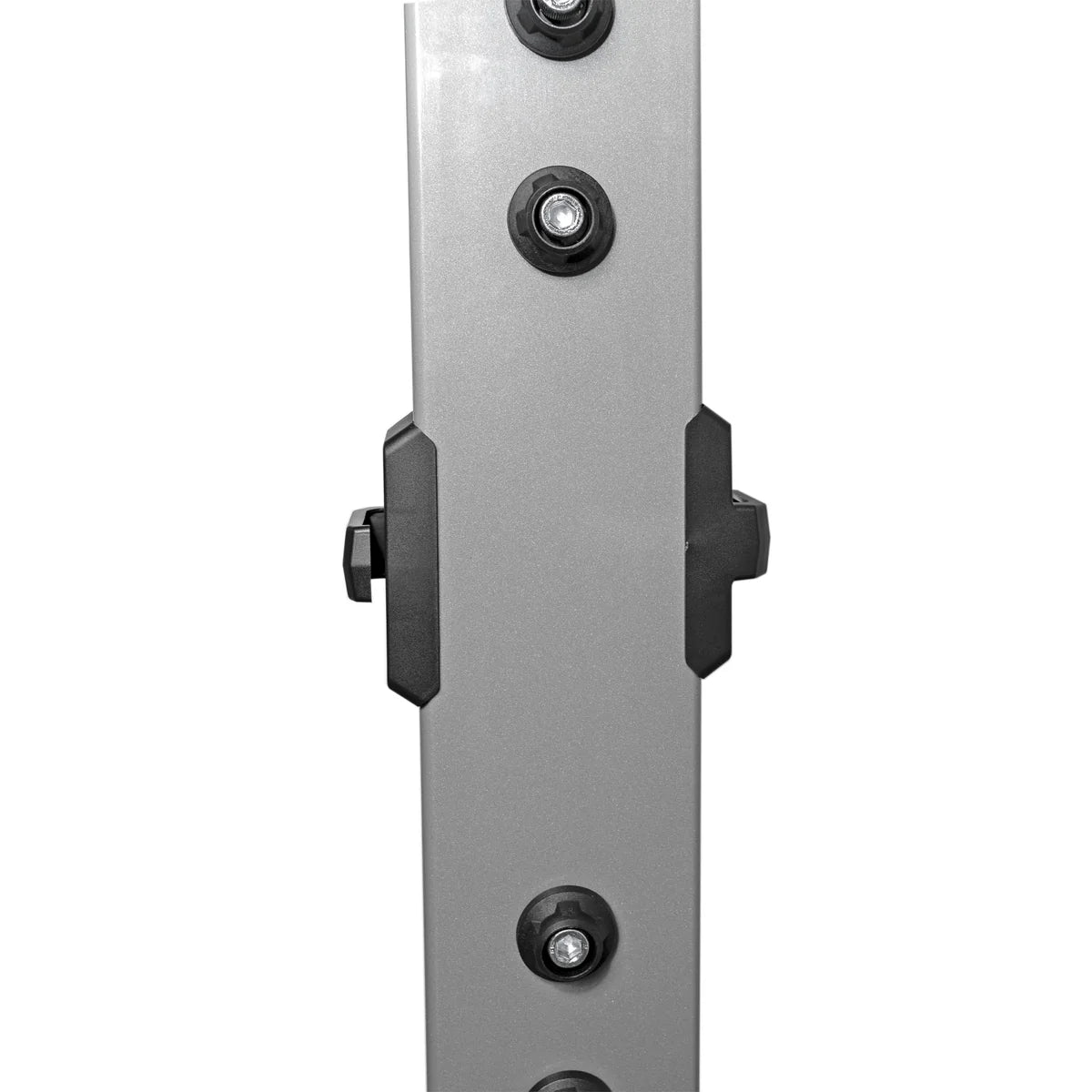

Close-up of X-CREATE 2-sided 8 ft upright in Platinum showing black mounting hardware and attachment points.
Close-up of X-CREATE 2-sided 8 ft upright in Platinum showing the vertical branding on the steel post.

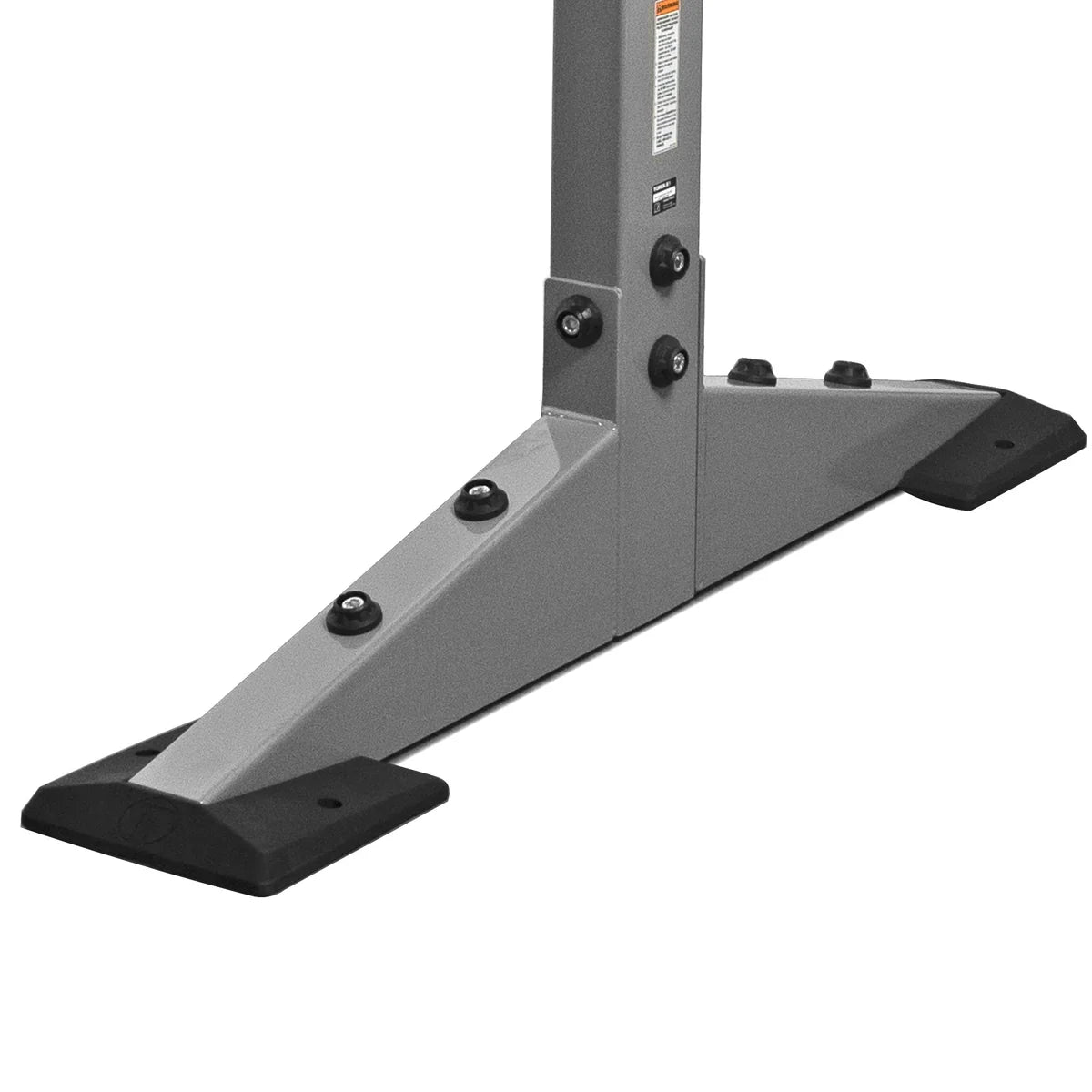

Close-up of X-CREATE 2-sided 8 ft upright in Platinum showing angled steel base feet with mounting holes.

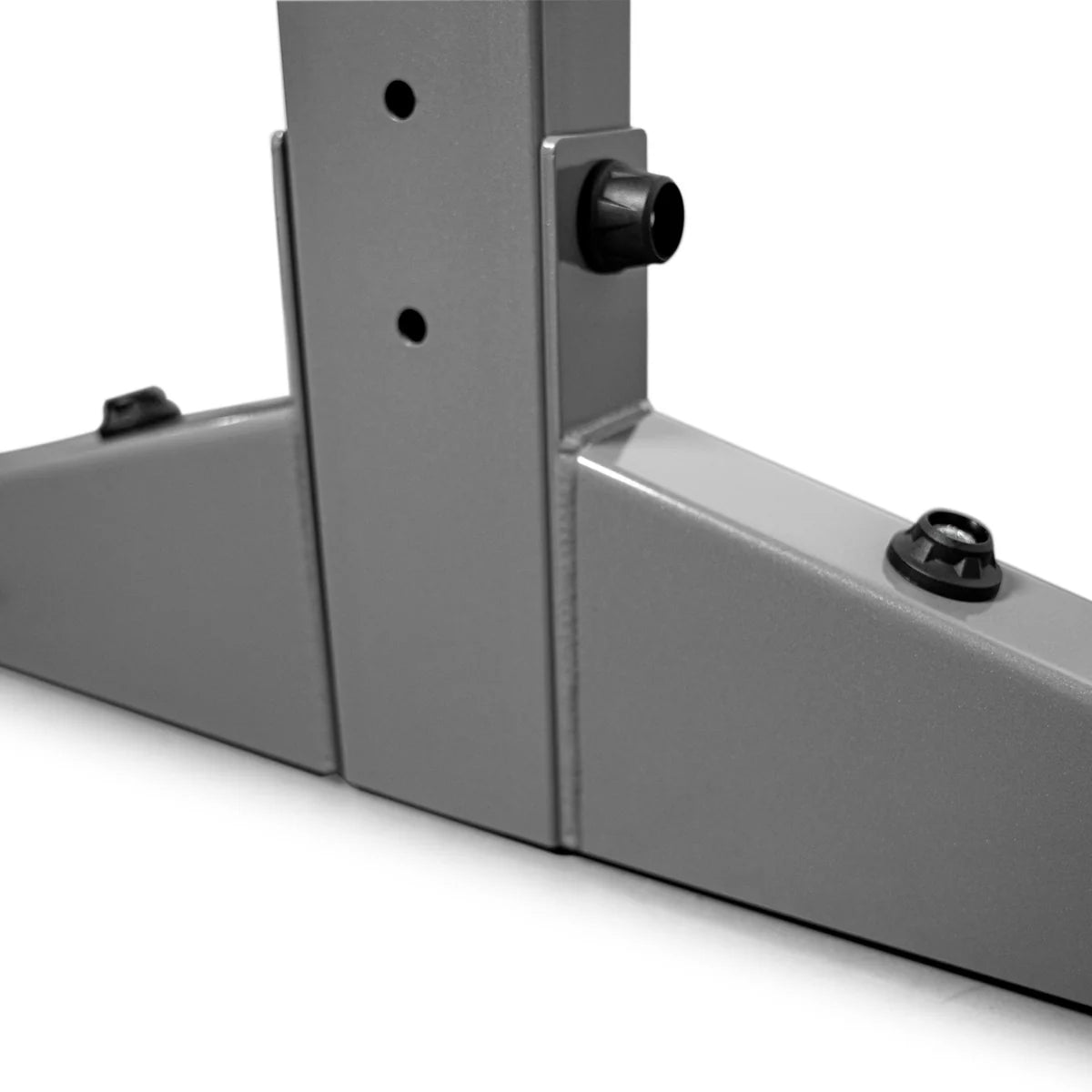

Close-up of X-CREATE 2-sided 8 ft upright in Platinum showing the lower steel post connection and base hardware.

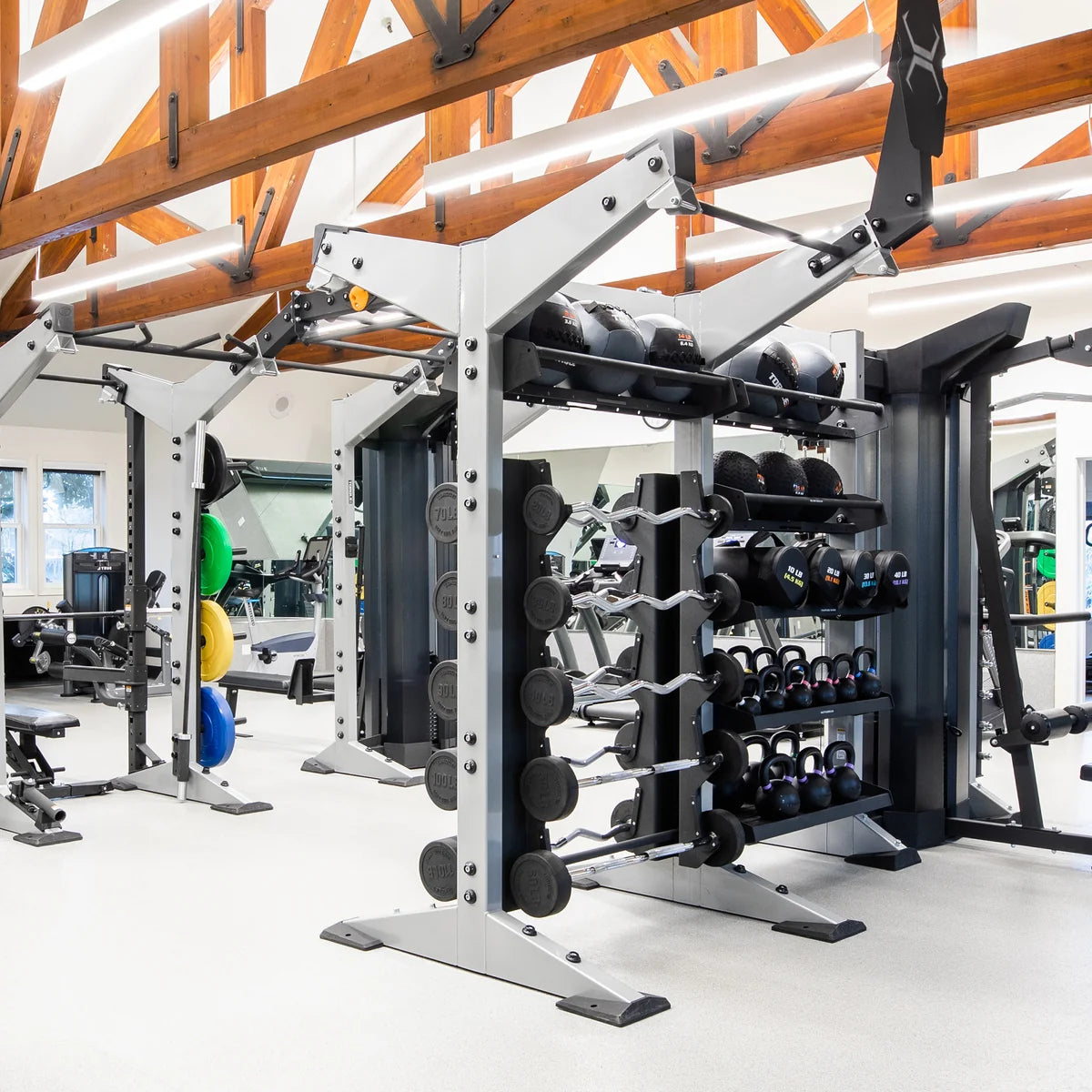

Gym installation featuring Platinum X-CREATE equipment uprights within a modular fitness training setup.
X-CREATE 2-sided 8 ft upright in Satin Black with Y-shaped upper brackets, vertical steel post, and angled base feet.
X-CREATE 2-sided 8 ft upright in Platinum with Y-shaped upper brackets, vertical steel post, and angled base feet.
Close-up of X-CREATE 2-sided 8 ft upright in Platinum showing the steel upper bracket connection and mounting holes.
Close-up of X-CREATE 2-sided 8 ft upright in Platinum featuring a black magnetic suspension strap holding clip.
Close-up of X-CREATE 2-sided 8 ft upright in Platinum showing black mounting hardware and attachment points.
Close-up of X-CREATE 2-sided 8 ft upright in Platinum showing the vertical branding on the steel post.
Close-up of X-CREATE 2-sided 8 ft upright in Platinum showing angled steel base feet with mounting holes.
Close-up of X-CREATE 2-sided 8 ft upright in Platinum showing the lower steel post connection and base hardware.
Gym installation featuring Platinum X-CREATE equipment uprights within a modular fitness training setup.
X-CREATE 2-sided 8 ft upright in Satin Black with Y-shaped upper brackets, vertical steel post, and angled base feet.
Torque

2-Sided 8 Ft (2.4 M) Upright

$1,438.00
/
Color Options
Contact Us

2-SIDED 8 FT STEEL UPRIGHT

The X-CREATE 2-Sided 8 Ft (2.4 M) Upright is designed for modular fitness equipment configurations. Constructed from 3" x 5" 11-gauge steel tubing with rugged 1/4" and 3/8" steel brackets and plates, it features magnetic suspension strap holding clips and black nylon bolt and nut covers. Compatible with X-CREATE module and attachment options, the upright must be bolted to the floor or constructed with Outrigger Attachments for freestanding use.

WHY CHOOSE THIS?

  • Steel Construction: Built with 3" x 5" 11-gauge steel tubing and rugged 1/4" and 3/8" steel brackets and plates.

  • Magnetic Strap Holders: Includes magnetic suspension strap holding clips for convenient strap organization.

  • Protective Hardware Covers: Black nylon bolt and nut covers provide a finished appearance and added protection.

  • Modular Configuration: Designed for X-CREATE modules and attachments, with floor bolting or Outrigger Attachments required for installation.

PRODUCT HIGHLIGHTS

  • 2-sided 8 ft (2.4 m) upright configuration
  • 3" x 5" 11-gauge steel tubing construction
  • Rugged 1/4" and 3/8" steel brackets and plates
  • Magnetic suspension strap holding clips
  • Black nylon bolt and nut covers

SPECIFICATIONS

Feature Details
Product Name 2-Sided 8 Ft (2.4 M) Upright
SKU XCREATE-U-8DS
Product System X-CREATE
Product Type 2-Sided Upright
Nominal Height 8 Ft (2.4 M)
Tubing Dimensions 3" x 5"
Tubing Gauge 11-Gauge
Bracket and Plate Thickness 1/4" and 3/8"
Bracket and Plate Material Steel
Suspension Strap Holders Magnetic Holding Clips
Bolt and Nut Covers Black Nylon
Color Options Platinum,Satin Black
Installation Requirements Must be bolted to the floor or constructed with Outrigger Attachments for freestanding use
